Features:
1. 100% full power & stable current output
2. 100% Imported components
3. Wide input voltage from 35-60Vdc
4. Industry grade DC48V to DC13.8V step-down converter, high efficiency up to 95%
5. 100% waterproof & anti-shock protection, Ultra compact size, light weight
6. According: CE/RoHS, IP68 design
7. Die-cast aluminum shell, epoxy potting, Cooling by free air convection
8. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circiut. Auto-recovery when device is back to normal operating
9. Non-Isolated Module,
10. 1 year warranty, lifetime up to 100,000 hours.
Specifications: | Model | SDJ-48S13R860 |
| Input rated voltage | 48V DC |
| Input voltage range | 35-60V DC |
| Efficiency | 96% (half load), 95% (full load) |
| Output voltage | 13.8V DC |
| Output current | 60 Amps |
| Output rated power | 828 Watts |
| Output peak power | 1050 Watts |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Ripple (Full load test) | < 100mV |
| No-load current | 50~60mA |
| Working temperature | -40°c ~ +80°c |
| Waterproof rating | IP68 |
| Over-voltage protection | YES |
| Over-current protection | YES |
| Over-temperature protection | YES |
| Short-circuit protection | YES |

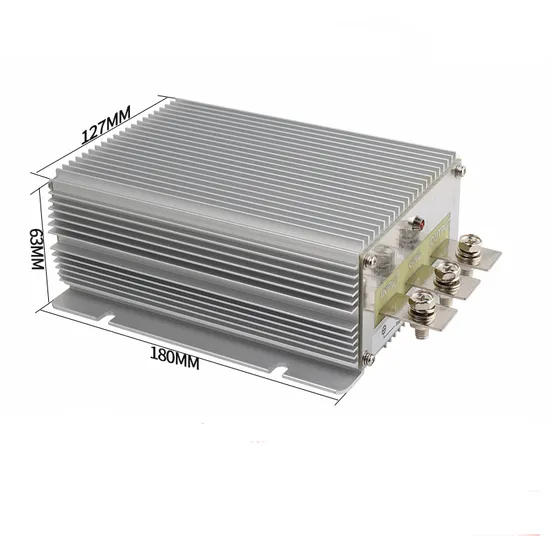

| Machine size | 182*127*63mm |
| Package size | 230*150*100mm |
| N. Weight | 1.5kg |
| G. Weight | 1.63kg |
| Cooling way | Free air convection |
| Other | Carton packaging |
|
