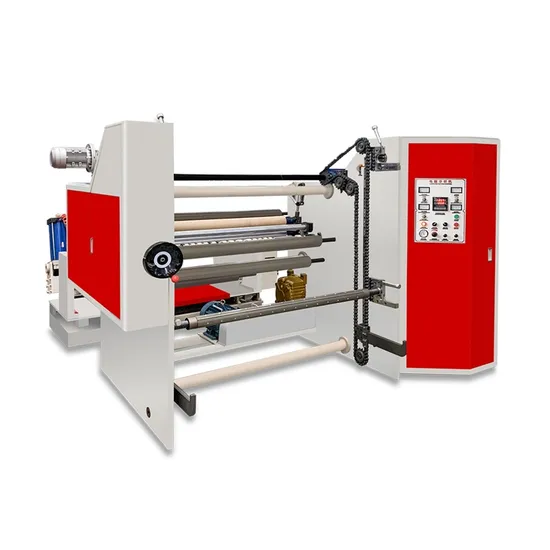

Rotary Automatic Thin Blade Label Fabric Thermal Slitter Scorer Blade Rewinder Machine Film Paper Vinyl Jumbo Roll 1600

Product Description

This Paper Slitting Machine Is Suitable for Slitting Paper Jumbo Roll Materials From Big Size To Small Size, It Is High Effective Converting Machine For Paper Bag
Making Machine. Ω Use Round Slitting Knife.
Ω With Auto Length Counting System.
Ω Unwind and Rewind with Tension Control.
Ω Unwind with the EPC Control System.
Ω Unwind and Rewind using the Air Shaft. Ω Electrical Parts use Schneider Brand. Ω Unwind Shaft Type Auto Loading.
Ω Optional: Unwind Shaft-less with Auto Loading.
Ω Optional: Straight Slitting Knife.
Ω

Model	KTSM-H150P/ 1300	KTSM-H150P/ 1600
Max. Raw Material Width	1200mm (47.2")	1500mm (59")
Max. Unwind Diameter	Φ1200mm (47.2")	Φ1200mm (47.2")
Max. Rewind Diameter	Φ800mm (31.5")	Φ800mm (31.5")
Min. Slitting Width	30mm (1.18")	30mm (1.18")
Max. Slitting Speed	150m/min	150m/min
Error	<0.5mm	<0.5mm
Paper Core Inner Diameter	76mm/152mm (3"/6")	76mm/152mm (3"/6")
Total Power	11kw	12kw
Machine Weight	3000kg	3500kg
Machine Size (LWH)	3800 x 2800 x 1800mm	3800 x 3100 x 1800mm
Machine Power	3 Phase 220 / 380 / 440v 50/60Hz

---
