Factory Wholesale Custom Size Drainage and Water Supply High Quality Chinese Manufacturers Plastic PPR Tube Pipe

Product Description

Product Description

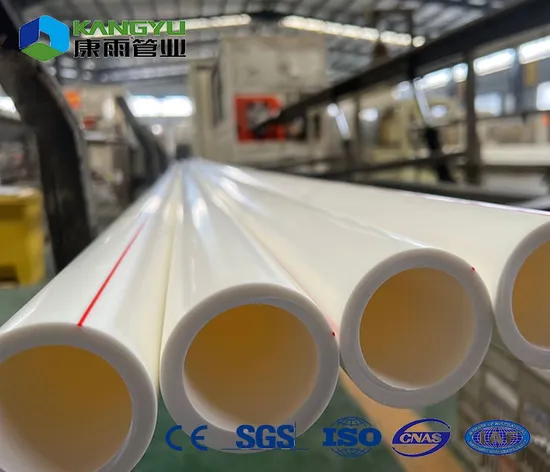

PPR plastic Supply Water pipe,used to transport drinking water and hot shower water in house water system . PPR pipe for drinking water transport from outdoor to indoor. Produced from PP raw material and color mast batch,without any harmful elements ,PPR pipe is the best choice for home water supply.
Product Parameters

Unit/mm	PN 1.0MPa	PN 1.6MPa	PN 2.0MPa	PN 2.5MPa
Outer Diameter	Wall Thickness	Wall Thickness	Wall Thickness	Wall Thickness
20	2.3	2.3	2.8	3.4
25	2.3	2.8	3.5	4.2
32	2.9	3.6	4.4	5.4
40	3.7	4.6	5.5	6.7
50	4.6	5.6	6.9	8.3
63	5.8	7.1	8.6	10.5
75	6.8	8.4	10.3	12.5
90	8.2	10.1	12.3	15
110	10.1	12.3	15.1	18.3
160	14.6	17.9	23.3	26.6

Product characteristics
1) High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius.
(2) Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe.
Non-toxic: no heavy metal additives would not be covered with dirty or contaminated by bacterium.
(3) Corrosion Resistant: resist chemical matters or electron chemical corrosion.
(4) Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system.
(5) Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes.
(6) Long Life: more than 50 years under normal conditions.
(7) Recycled and Environment-friendly.
Blockage caused by scale

Material	PP from sinopec
Specification	from DN20mm to DN160mm
Pressure Rating	1.25MPa, 1.6MPa, 2.0Mpa, 2.5Mpa
Certification	CE, SGS, ISO, CNAS, IAF
Connection	Welding
Color	green and white with blue,red line or Customized

Applications
·Cold and hot water supply
·Heating system including flooring heating,wall heating and radiant system
·Central air conditioning system
·Industrial Industrial liquids transportation
Detailed Photos
High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius.Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe.Non-toxic: no heavy metal additives would not be covered with dirty or contaminated by bacterium.Corrosion Resistant: resist chemical matters or electron chemical corrosion.Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system. Long Life: more than 50 years under normal conditions.
Recycled and Environment-friendly.
Company Profile
Our History
Shandong Kangyu Pipe Industry Co., Ltd., founded in 2000, as a professional manufacturer and exporter specializing in the productions of PP-R, HDPE, PVC, PE-RT, PB plastic pipes, and fittings. Located in Linyi City, Shandong province, China, we are close to Qingdao port.
We devote ourselves continuously to international trade and supply pipeline dealers who come from all over the world with customized services.
Our Factory
In order to build a modern factory, we invest in a series of professional mechanical equipment. The annual output amounts to 30000 tons, which can fill up 3000 containers.
The excellent machinery and consummate management system can reduce cost, shorten delivery time and ensure the quality of every product.
Certifications
We have passed CE, SGS, ISO, CNAS, IAF certification and our products compound international standards
FAQ
Q1: May I get one sample before placing order?
A: Yes, Sample are available. For normal products, samples are for free and you just need to bear the freight; For those high value products, you just need to freight and certain product cost. When we both cooperate for some times or when you are our VIP customer, free sample will be offered when you need.
Q2: Which payment is available for your company?
A: T/T, L/C or Ali trade insurance. You can choose the one which is convenient for you.
Q3: How and when can I get my goods after payment?
A: For small quantity products, they will be delivered to you by international courier(DHL, FedEx, TNT etc.) or by air. Usually it will cost 3-5days that you can get the goods after delivery. For large quantity products,shipping by see is worthwhile.It will cost days to weeks to come to your destination port, which depends on where the port is.
Q4: Is there any possible to use my appointed label or package?
A: Yes. If needed, we'd like to use label or package according to your requirement.
Q5: How can you guarantee the goods you offer is qualified?
A: We always believe honesty and responsibility are basis of one company, so whatever products we provide for you all are qualified. We will have goods tested and provide COA before delivery for sure.
Q6: Is the price on this page correct?
A: The listed price is only for reference, for latest price, pls contact us directly.
Q7: How can I get some samples?A: We are honored to offer you free samples, just need to pay the freight cost.

---
