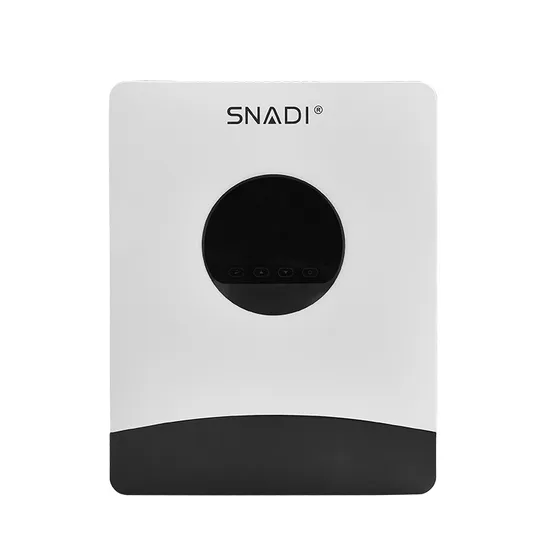

Snadi 6kw Solar Power Inverter with 99% Efficiency for Streets

US$300.00-320.00 10 Pieces (MOQ)

Basic Info.

Phase
Single
Output Power
6kw
Certification
SAA, CE, ROHS, ISO9001, CCC
Brand
Snadi
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Push-pull Type
Nature of Wave String
Sine Wave Inverter
Brand Name
Snadi Hybrid Solar Inverter
Accessory
MPPT Controller Build in
Company
Manufacture
Application
School, Streets, Pasturing Areas, etc
Efficiency
99%
Controller Rated Current
120A
Mains Supply Input Voltage
85-138VAC/170-275VAC
Working Mode
DC AC Solar System
AC Output Voltage
110VAC/220VAC
Battery
Deep Cycle AGM Acid Battery\LiFePO4 Battery
Charging
Solar and AC Charger
Function
Parallel Connect
Wave Mode
Pure Sine Wave
Communication
USB/RS232/WiFi/GPRS (Optional)
IP Grade
IP54
Transport Package
Poly-Wooden
Specification
CE: HOHE-150806004CE
Trademark
SNADI
Origin
Foshan/Guangzhou China
HS Code
8504403090
Production Capacity
10000000PCS/Month for Inverter with Controller

Packaging & Delivery

Package Size
439.00cm * 320.00cm * 128.00cm
Package Gross Weight
15.000kg

Product Description

Model NKH-3KW NKH-5KW
Rated Power 3000W 5000W
Input
Voltage 208VAC/220VAC/230VAC/240VAC
Selectable Voltage Range 170-280VAC(For Personal Computers)
90-280VAC(For Home Appliances)
Frequency Range 50Hz/60Hz(Auto sensing)
Output
AC Voltage Regulation (Batt .Mode) 208VAC/220VAC/230VAC/240VAC 5%
Surge Power 6000VA 10000VA
Efficiency (Peak)PV to INV 97%
Efficiency (Peak)Battery to INV 94%
Transfer Time 10 ms
Overlord Capacity 1min@102%-110% Load, 10s@110%-130% Load, 3s@130%-150% Load, 0.2s@>150% Load
Battery & AC Charge
Battery Voltage 24VDC 48VDC
Floating Charge Voltage 27VDC 54VDC
Overcharge Protection 32VDC 64VDC
Maximum Charge Current 60A 80A
PV Charge
Maximum PV Array Power 1500W 5500W
MPPT Range Operating Voltage 30-115VDC 120-430VDC
Maximum PV Array Open Circuit Voltage 145VDC 450VDC
Maximum Charge Current 60A 80A
Maximum Efficiency 98%
AC+PV Charge
Maximum Charge Current 120A 80A
Physical
Dimension D*W*H(mm) 439*320*128
Net Weight(kg) 8 9.2
Communication interface USB/RS232/GPRS/WIFI
Opera Ting Environment
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0- 55
Storage Temperature -15ºC-60
