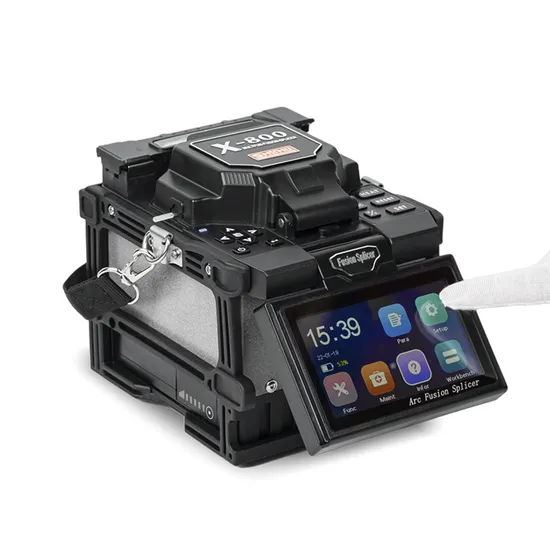

Shinho X-800 Japan Original High Quality Multi-Function Touch Screen Fiber Fusion Splicer

Product Description

Features 6s typically for splicing and 20s for heating,
Fiber core max. magnifications up to 250X,
Electrodes discharging more than 4000 times,
Integrated heater, easy and convenient to operate,
USB port for software updating and data records exporting,
PAS image digital processing system, core to core alignment,
ARC calibrated by temperature and air pressure automatically,
360°rubber armor protects machine from shock, water and dust,
5200mAh and pluggable Li-battery, typical 250 cycles splicing and heating,
Multi-function holder clamps, suitable for bare fibers, skin line cables, jumper cables etc.
Specifications

Applicable fiber	SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657)
Fiber count	Single
Applicable fiber dimensions	Cladding diameter: 80 -150μm, Coating diameter: 160 - 900μm
Typical splice loss	0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)
Return loss	>60db
Fiber cleaved length	10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm )
Splicing program	40 groups
Operate mode	Manual, Automatic
Auto-heating	Available
Typical splicing time	6 seconds
Tube heating time	20 seconds for 60mm and 40mm shrinkable sleeves
Fiber view magnification	250X(X or Y view), 125X(X and Y view)
Viewing method and display	2 CMOS cameras, 4.3 inch color LCD monitor, touch screen display
Storage of splice result	4000 results
Loss evaluation	Available
Tension test	1.8-2.2N
Interface	GUI menu interface, easier operation
Battery capacity	5200mAh, typical 250 cycles(splice and tube heat), pluggable inner Li-battery
Power supply	Adaptor, input: AC100-240V(50/60HZ)
Electrode life	More than 4000 ARC discharges, can be replaced conveniently
Terminals	USB 2.0 port, for uploading splice results and upgrading software
Operating condition	Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10ºC~+50ºC;Wind speed: max 15m/s
Dimension	157mm(L)x136mm(W)x140mm(H)
Weight	2.1kg including battery

Standard Configuration:
Packaging Details:
Carton Size: 53cm x31cm x34cm
Gross Weight: 9.5kg
Delivery Detail: in 2 days
Delivery leading period:
Within 3 working days for small orders after receiving full payment
Kindly consult us for bulk orders
Shipment:
Choosing DHL, FedEx, TNT, EMS, UPS and other Express, delivering to your hands directly for small orders.
By sea or by aircargo for bulk orders.
Company Information
Shanghai Shinho Fiber Communication Co., Ltd is one real professional manufacturer of fusion splicers.We provide OEM, ODM and other services to our valuable customers from overseas markets.As a new manufacturer, our X-series optical fiber fusion splicers have independent IPR. Our optical fiber splicing machines have advanced and stable performance, their operation is easy and intelligent, being widely used in kinds of telecom areas, like communication projects, broadcasting & TV, railway, petroleum & chemical industry, optical passive components production, scientific institute, etc. Based on years of experiences in optical communication fields, our aim is to provide you excellent fiber optic fusion splicers, and best after-sales service. Hoping we could establish business relations with your esteemed company very soon.
contact us:
Shanghai Shinho Fiber Communication Co., Ltd--- Professional Fusion Splicer Manufacturer
