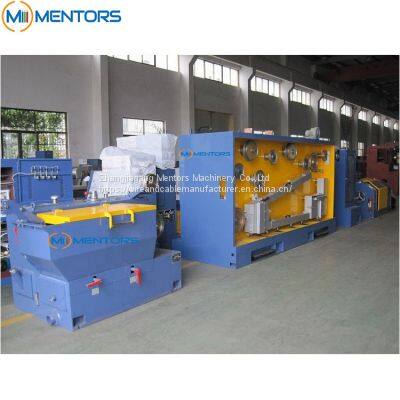

Intermediate Wire Drawing Machine with Annealer

Product Details

Product Description

Product Description
1. Application:
This type is used for drawing copper wire and other alloy wire with annealer from 2.6-3mm to 1.13-2.78mm.
2. Main feature:
1)Max.Dies Qty: 9
2)Outlet wire size: 1.13-2.78mm
3)Max speed:20m/s
4)Three or four sections horizontal annealing
3.Parameters:

Machine type	SY-9DHT
Control system	PLC with touch screen
Inverter control	Dual inverter control
Drawing dies No./max.	9
Inlet diameter	Ø 2.6- 3.0mm
Out diameter	Ø1.13- 2.78mm
Drawing line speed	1200mpm/max
Slip ratio of m/c	18%
Fix speed capstan slip ratio	15.5%
Frame	Ironed cast
Capstan	Ceramic plasma capstan
Main motor	55kw
Spooler motor	11kw
Capstan dia.(max)	Ø 300mm
Fix speed capstan dia.	Ø 300mm
Dia.of annealing	Ø 350mm
Annealing voltage	DC 0-60V
Annealing current	DC 2500A
Protection type	Steam or nitrogen
Spool bobbin size	Ø 500mm-630mm

4-Advantage:
1). For same finished size, compare to Rod Breakdown Machine, electricity and energy saving.
2). Ironed cast and Wear-resistant capstan can keep long life.
3). Fully immersed lubrication, lubrication tank body is separated with gear box without oil mixed.

---
