Stone Block Cutter Machine in Stock

Product Description

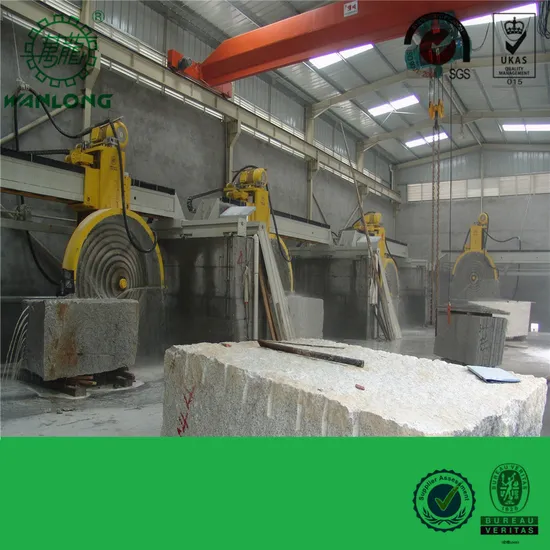

QSQ-2200/25000/3000 Bridge Multiblade Block Cutter
ANY QUESTIONS: PLS FEEL FREE TO CONTACT VIVIAN WU
Vivian Wu
Sales representivie


l It combines different diameters of blades working simultaneously as multiblade cutting.
l It has screw-rod lifting system and hydraulic lifting system for choice. T
l he crossbeam moves for feeding so that the table for block is not necessary ( which does not supply along with machine, only available upon request ).
l Heavy duty strcuture, logical control system, easy operation together with " Wanlong" blade give high production and also make the finish slab with flat surface, no tapper.
l It is also flexible in modification for Single blade cutting.

QSQ Mutiblade block cutters
lTechnical parameter
Item		QSQ-2200		QSQ-2500	QSQ-2800
Max. blade diameter		2200mm		2500mm	2800mm
Max. cutting length		3200 mm		3000 mm	3000 mm
Max. cutting width		1800 mm		1800 mm	2100 mm
Max. cutting height		950 mm		1100 mm	1250 mm
Max. No. of blades		8(for reference)		5(for reference)	1
Suggestion on Muti-blades		2200mm, 2000mm, 1800mm, 1600mm,		2500mm,2000mm	2800mm
		1400mm, 1200mm,		1600mm,1200mm
		1000mm, 800mm		800mm
Main motor power		45 kw		45 kw	37 kw
Power requirement		3 Phs 380V 50Hz(other is available)
Overall dimension		7300X3800X550 0		7300X3800X550 0	7300X3800X610 0
		(LxWxH)/mm		(LxWxH)/mm	(LxWxH)/mm
Water consumption		6m3/h		6m3/h	6m3/h
Total Weight		10,000 kg		11,000 kg	12,000 kg

Company Information Wanlong has dedicated to stone cutting and stone application since 1993. Today, average of 100,000 pieces of Wanlong diamond tools are exported to the world every day. Insisting on technological innovation, we continue to create more efficient and more cost-effective diamond tools. We have developed laminated stone panel. Our mission is bridging nature and human culture.
Three branches: diamond tools. Stone processing machinery and Composited stone panels industry make Wanlong today's success.
Patent
With 13 patents by Wanlong Stone Co., Ltd (2 Invention Patents, 10 New Practical Patents, and 1 Exterior Patent)
In 2003
Obtaining the patents for "Decoration Stone Panel ", " Stone-Panel-Laminated Vanity Top", " Aluminum Stone Panel" and the " Stone Slabs with Anchors"
In 2004Obtaining the patents for " Fiberglass Stone Panel ", " Stone-Panel-Laminated Countertops", " Improved Stone-Panel- Laminated" and the " Fire-proof Stone Panel for Decoration"
In 2005Obtaining the patents for "New Stone-Panel-Laminated for Decoration "," Connection Device Laminated Stone Panel on Exterior-Wall" and "New Aluminum Stone-Panel-Laminated"
In 2007obtaining the patents for"The Honeycomb Aluminum Stone Panel" and "The Decoration Structure with the Honeycomb Aluminum Stone Panel Laminated"
In 2009Being Authorized with the Invention Patent for the Anti-shedding super-thin Laminated Stone Panel
Certifications

---
