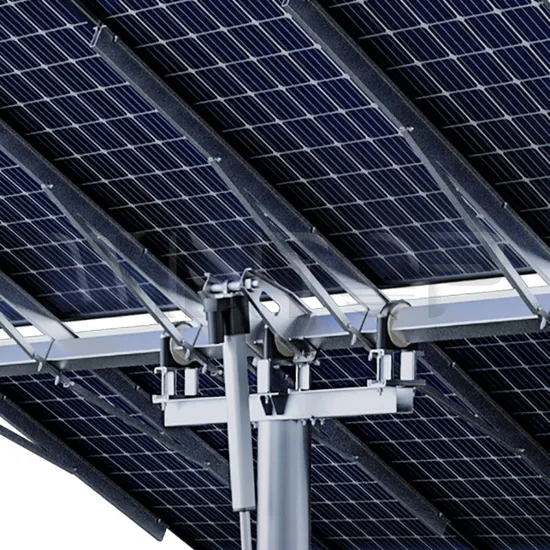

Arduino Single Post Solar Tracking System for Small Project

Product Description

Arduino Single Post Solar Tracking System for Small Project Product Description The single post solar tracking system is fully compatible with 210 silicon wafer modules.The single pile solar tracker system is a single-axis double-row small solar tracker. The tracking system is an automatic solar tracker, which adopts the driving type of linear electric actuator and has manual control mode. The system has 10 photovoltaic panels, which can increase the power generation by 10-25%.
Product Parameters

PV-Modules
PV- Modules supported	Fully fit for 210 module
Structure
System type	Single post tracking system
Maximum capacity per set	6.0kWp ( Estimated with 600W PV-Modules )
PV- Module quantity per set	10 PCS
Tracking Range	±45°( E-W )
Tracking accuracy	±0.5°
Tracking type	Single axis tracker
Structural Materials	HDG Steel, Al- Mg-Zn Coating Steel
Foundation	Concrete foundation, Steel pile, PHC pile
Electrical
Solar tracking method	Astronomical algorithm + closed- loop control (AI)
Control system	MCU
Drive method	Linear Drive
Motor Type	24V DC Motor
Power supply	AC- powered or self- powered ( with 8 PV modules )
Manual operation	Yes
Protection function
Wind protection	≥18m/s ( Windy area )
Night stow mode	Yes
Overheat prevention	Yes
Overheat prevention	Yes
System fault self-diagnosis	Yes
Rotate to horizontal time	5-6min
Environment
Wind load	Customized according to local condition
Operating temperature	-30°C ~ +60°C
Operating temperature	C5
Other
Special tools	Equipped with debugging tools
Load design standard	GB, ASCE, BS EN,AS (according to project)

Electrical Principle
Features & Benefits Fully fit for 210 module Intelligent AI algorithm to improve power generation Built-in inclination sensor Easy installation and easy maintenance Stable and reliable operation Smart wind protection mode Power generation increasement of 10-25% Optional AC power or self-power supply Project
Company Profile Xiamen Wintop New Energy Tech. Co. Ltd was established in 2016, it is a high-tech enterprise that integrates R&D, production and marketing of Solar Mounting System for residential, commercial and utility scale customers.
FAQ 1.Your solar tracker can be automatic, can it be adjusted manually?
Generally it should be within 14days since order placed,if there are any special requirements,let us know please.Yes, our solar tracker can be both automatic control and manual adjustment.
2.What's your difference with other suppliers?How long is the warranty period of the solar tracker?
Our solar tracker is maintenance-free for 25 years, the warranty for the bracket structure is 10 years, and the warranty for the drive, electrical, and dampers is 5 years.
3.How much does your solar tracker power increase?
Generally, compared with fixed support, the power generation increase is about 10%-15%. According to different latitudes, there will be differences. The power generation of bifacial modules is different under different vegetation conditions, usually 20-25%. It can be increased to more than 30% in the snow.
4.What is your design standard?
For various countries,the standards that we follow are different,such as in Japan,it should be JIS2017 or JIS2019
5.Generally,when we look for suppliers on the internet,we worry about their credits,so how should you promise that we can trust you?
As you know,we are young,but we have survived for 5 years since 2016,which is worthy-trust,and what's more,if you need,our business licence could be provided.

---
