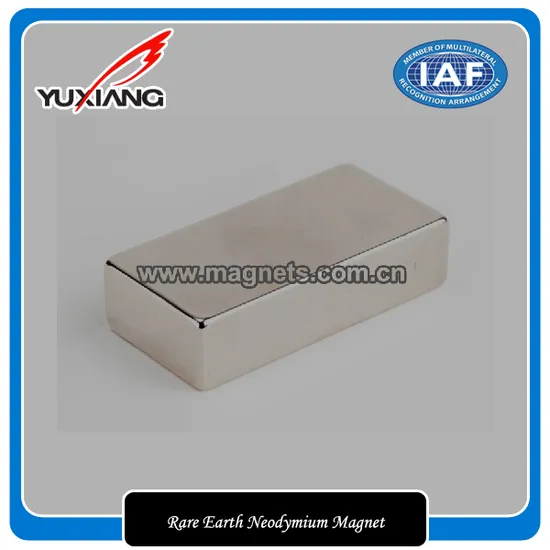

Rare Earth Neodymium Magnet Manufacturer

Product Description

Rare Earth Neodymium Magnet Product Description 1. Rare earth neodymium magnets are very strong magnets, they are high resistance to demagnetization and are very useful in many different kinds of industrial applications. NdFeB energy grade upto N52 magnets. Besides, we can also supply many other grades, like N50 magnets, N42 magnets, N40, N30 etc.
2. Our neodymium magnets are particularly suitable for high volume production of a wide variety of shapes and size ranges. Precise dimensional control is achieved in both processed and usually the component does not require further machining
3. Neodymium magnets are very strong relative to their mass, but are also mechanically fragile. The neodymium magnets we sell are extremely strong, and must be handled with care to avoid personal injury and damage to the magnets. Fingers and other body parts can get severely pinched between two attracting magnets
4. Injection moulded neodymium iron boron magnets do not normally require coating due to better corrosion resistance, however coating is recommended for compression moulded NdFeB
5. Neodymium magnets are now being used in the music industry. Some manufacturers are using them as speaker magnets due to their strong magnetic field, stability, and weight. This makes for equipment that is lighter and more portable.
There are 4 different ways in which you can identify the poles of Neodymium magnets.
1. The simplest way is to use another Neodymium magnet that is already marked. By virtue of magnetic properties, the North Pole of the marked magnet will attract the South Pole of the unmarked Neodymium magnet and repel the North Pole
2. Take a compass and bring it close to the Neodymium magnet you want to mark. The North Pole of the compass will be attracted to the South Pole of the Neodymium magnet and repelled by the North Pole
3. Take a magnet and dangle it by a string so that it is freely rotating. The North Pole of the magnet will be the one that points north
4. Use our magnetic pole detector, which is also in the range of our products, to identy the pole of magnet easily.
Detailed Photos
Product Parameters

Typical Magnetic Performance for Sintered NdFeB
Grade	Br		Hcb		Hcj		(BH)max		Work Temp
	T	KGs	KA/m	KOe	KA/m	KOe	KJ/m³	MGOe	TW(L/D=0.7)
	Min		Min				Min
	Max		Max				Max
N35	1.17	11.7	876	11	≥955	≥12	263	33	≤80
	1.21	12.1	899	11.3			279	35
N38	1.22	12.2	876	11	≥955	≥12	287	36	≤80
	1.26	12.6	923	11.6			303	38
N40	1.26	12.6	876	11	≥955	≥12	303	38	≤80
	1.29	12.9	923	11.6			318	40
N42	1.3	13	876	11	≥955	≥12	318	40	≤80
	1.33	13.3	926	11.3			334	42
N45	1.33	13.3	876	11	≥955	≥12	342	42	≤80
	1.37	13.7	926	11.6			358	45
N48	1.36	13.6	876	11	≥955	≥12	358	45	≤80
	1.42	14.2	926	11.6			382	48
N50	1.41	14.1	828	11	≥876	≥11	382	48	≤70
	1.45	14.5	907	11.4			398	50
N52	1.44	14.4	828	10.5	≥876	≥11	394	49.5	≤70
	1.48	14.8	907	11.4			414	52
N35M	1.17	11.7	892	11.2	≥1114	≥14	263	33	≤100
	1.21	12.1	915	11.5			279	35
N38M	1.22	12.2	907	11.4	≥1114	≥14	287	36	≤100
	1.26	12.6	931	11.7			303	38
N40M	1.26	12.6	907	11.4	≥1114	≥14	303	38	≤100
	1.29	12.9	947	11.9			318	40
N42M	1.3	13	907	11.4	≥1114	≥14	318	40	≤100
	1.33	13.3	947	11.9			334	42
N45M	1.33	13.3	907	11.4	≥1114	≥14	334	42	≤100
	1.37	13.7	955	12			358	45
N48M	1.36	13.6	907	11.4	≥1114	≥14	358	45	≤100
	1.42	14.2	955	12			382	48
N33H	1.14	11.4	820	10.3	≥1353	≥17	247	31	≤120
	1.17	11.7	876	11			263	33
N35H	1.17	11.7	860	10.8	≥1353	≥17	263	33	≤120
	1.21	12.1	907	11.4			279	35
N38H	1.22	12.2	907	11.4	≥1353	≥17	287	36	≤120
	1.26	12.6	947	11.9			303	38
N40H	1.26	12.6	907	11.4	≥1353	≥17	303	38	≤120
	1.29	12.9	947	11.9			318	40
N42H	1.3	13	907	11.4	≥1353	≥17	318	40	≤120
	1.33	13.3	947	11.9			334	42
N44H	1.33	13.3	907	11.4	≥1274	≥16	334	42	≤110
	1.36	13.6	947	11.9			350	44
N30SH	1.08	10.8	804	10.1	≥1592	≥20	223	28	≤150
	1.12	11.2	844	10.6			239	30
N33SH	1.14	11.4	820	10.3	≥1592	≥20	247	31	≤150
	1.17	11.7	876	11			263	33
N35SH	1.17	11.7	860	10.8	≥1592	≥20	263	33	≤150
	1.21	12.1	907	11.4			279	35
N38SH	1.22	12.2	907	11.4	≥1592	≥20	287	36	≤150
	1.26	12.6	947	11.9			303	38
N40SH	1.26	12.6	907	11.4	≥1592	≥20	303	38	≤150
	1.29	12.9	947	11.9			318	40
N42SH	1.3	13	907	11.4	≥1512	≥19	318	40	≤140
	1.33	13.3	947	11.9			334	42
N28UH	1.04	10.4	780	9.8	≥1990	≥25	207	26	≤180
	1.08	10.8	812	10.2			223	28
N30UH	1.08	10.8	804	10.1	≥1990	≥25	223	28	≤180
	1.12	11.2	844	10.6			239	30
N33UH	1.14	11.4	820	10.3	≥1990	≥25	247	31	≤180
	1.17	11.7	876	11			263	33
N35UH	1.17	11.7	860	10.8	≥1990	≥25	263	33	≤180
	1.21	12.1	907	11.4			279	35
N38UH	1.22	12.2	907	11.4	≥1990	≥25	287	36	≤180
	1.26	12.6	947	11.9			303	38
N28EH	1.04	10.4	780	9.8	≥2388	≥30	207	26	≤200
	1.08	10.8	812	10.2			223	28
N30EH	1.08	10.8	804	10.1	>=2388	≥30	223	28	≤200
	1.12	11.2	844	10.6			239	30
N33EH	1.14	11.4	820	10.3	≥2388	≥30	247	31	≤200
	1.17	11.7	876	11			263	33
N35EH	1.17	11.7	860	10.8	≥2388	≥30	263	33	≤200
	1.21	12.1	907	11.4			279	35
Working temperature is tested under20°C±2°C,the inevitable loss of magnetic force is no more than 5%
