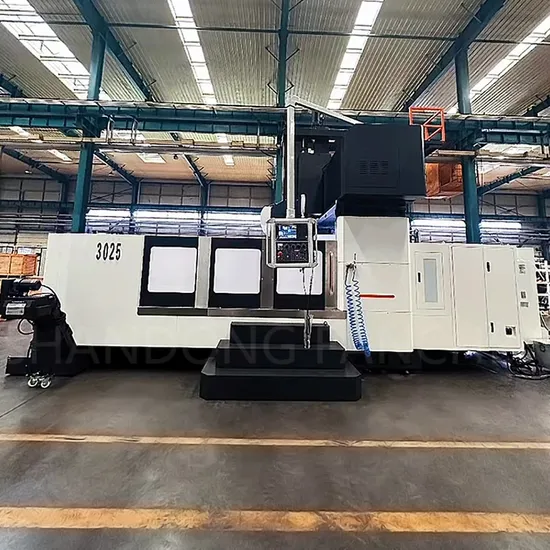

3022 3020 Closed Type CNC Gantry Machine Has High Cutting Force

US$149,000.00-668,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
GMB3022
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Five-Axis Gantry Machining Center
Certification
GS, CE, ISO 9001
Condition
New
Bed Dimension
3000/1800mm
Maximum Load-Bearing of The Workbench
8000kg
T(-)T-Type Groove (Slot Number-Slot Widt
8-22mm
Xmaximum X-Axis Itinerary
3200mm
Ymaximum Travel of Y Axis
2200mm
Zmaximum Trip on The Z Axis
1000mm
Longmen Width
2200mm
Maximum Work Size Height
1200mm
Range of Speeds
6000rpm
Spindle Taper
Bt50
Maximum Cutting Speed
1-10000m/Min
Positioning Accuracy
0.005/300mm
Overall Dimension
8500/4250/4100mm
Transport Package
Two Years
Specification
8500/4250/4100mm
Trademark
FANCHEN
Origin
China
Production Capacity
100

Packaging & Delivery

Package Size
850.00cm * 425.00cm * 410.00cm
Package Gross Weight
8000.000kg

Product Description

Content Name (of a thing or organization) Specifications and models
Operating platform Bed dimension 3000mm X 2000mm
Maximum load-bearing of the workbench 8T
Range of work XMaximum X-axis itinerary 3200 mm
YMaximum travel of Y axis 2200 mm
ZMaximum trip on the Z axis 1100 mm
Gantry width 2200 mm
Principal axis Range of speeds 6000 r/min
Maximum power of the spindle motor 22 kw
/Minimum / maximum distance from spindle to mesa 150-1250 mm
Spindle taper BT50/190
Servo Three-axis motor torque 36/36/36 NM
Feed Speed Quick travel X28m/min
Y 28m/min
Z12m/min
Maximum cutting speed 6000 mm/min
Positioning accuracy Xx-axis 0.008 mm
YY-axis 0.008mm
ZZ-axis 0.005 mm
Repeat positioning accuracy Xx-axis 0.005mm
YY-axis 0.005 mm
Zz-axis 0.005mm
verticality X/YX/Y axle ±0.005/300 mm
Machine tool weight 42T

FAQ
1.:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
