Product Introduction

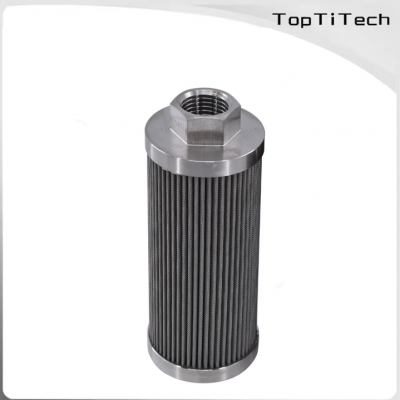

The stainless steel pleated filter element is a high-efficiency filter material. Due to its unique process characteristics, it has been widely used in filtration and separation in water treatment, food and beverage, pharmaceutical, and other fields.
The manufacturing process of the stainless steel pleated filter element is to use high temperature and high pressure to pass the stainless steel wire mesh through pressing rollers, dies, etc. to form a folded structure, and then process it into filter materials of various specifications.
Product parameters
Filtration accuracy: 0.1-200 microns
Diameter: 60mm, 80mm, 100mm
Length: 250mm, 500mm, 750mm, 1000mm
Filter element material: stainless steel 304, 316, etc.
Filter structure: single-layer, multi-layer, multi-layer composite structure
Operating temperature range: -40°C~200°C
Maximum pressure: 1.0MPa, 1.6MPa, 2.5MPa
Features
1. High-efficiency filtration: The structure of the pleated filter element is tighter than that of the ordinary filter element, which can better filter out fine particles and improve filtration efficiency.
2. Good washability: Since the material of the stainless steel pleated filter element has good corrosion resistance and high temperature resistance, it is not easy to be damaged during the cleaning and can be recycled many times.
3. Long life: The stainless steel pleated filter material has excellent corrosion resistance and high temperature resistance, so it has a long life and can greatly reduce material replacement and maintenance costs.
Applications
Due to its high-efficiency filtration, good washability, and long life, stainless steel pleated filter elements have been widely used. Among them, in the field of water treatment, such as tap water filtration, mineral water filtration, sewage treatment, etc., the application of stainless steel folded filter elements is more common.
In the field of food and beverage processing, such as filtration and separation of beer, fruit juice, tea beverages, etc., stainless steel pleated filter elements also give full play to their filtration efficiency and long life.
In addition, stainless steel pleated filter elements have been widely used and promoted in pharmaceutical, petrochemical, chemical, electronic and other fields.
In short, the stainless steel pleated filter element has been widely used in water treatment, food and beverage, pharmaceutical, and other fields due to its high-efficiency filtration and long life. In the future, with the advancement of science and technology and the continuous innovation of the stainless steel pleated filter manufacturing process, it is believed that the stainless steel pleated filter will have wider application prospects in more fields.
Package and Shipment
1. Sintered Filters are usually packed in cartons, wrapped in soft film, and fixed in a box filled with industrial foam cotton, and the outer baler is packed with plastic bags with no damage during transportation.
2. Wooden box export packaging can also be customized. The foam cotton can be filled and fixed, the external box is sealed, the bottom is specified, the whole packaging is processed, and the goods can be delivered to the designated place of the customer without damage.
