Wheat Barley Rye Sorghum Grain Fine Seed Cleaner Machine Seed Cleaner

Product Description

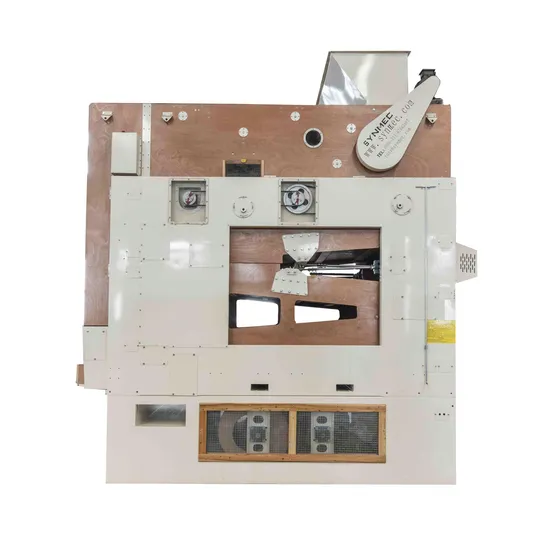

Wheat Sorghum Grain Seed Fine Cleaner Machine
Introduction of Wheat Rye Sorghum etc. Grain Seed Fine Cleaner Machine
SYNMEC Fine Seed Cleaner has been developed for high quality fine cleaning of malting barley, seed grain, legumes, grass and garden seeds. The machine's efficient screen system with its accurately matched stroke and frequency, is complemented by highly developed pre- and after suction system. Two air lifting blowers at the bottom of the machine ensure unrivalled air cleaning and grading.
1. Pre-suction
With finely adjustable suction intake directly under the feed gate for effective removal of fine particles.
2. Screens
(L x W = 800 x 1250 mm) can be employed as sieves, sorters or graders, and are effectively kept clean by rubber balls in newly developed ball boxes. It is not necessary to take out the ball boxes
when changing screens.
3. Eccentric drive system for screen boats
Supplied standard with fixed speed alternative frequency regulation.
4. After suction
Light particles are sucked out of the product flow on the air screen and lead through the air lifting channel to the expansion chamber, from where it is extracted by screw conveyor.
5. Two air lifting blowers
Ensure a homogenous airflow and support the after suction considerably. Delivered with frequency regulation. The system is used to separate light grains with low germination, from the final product, by blowing the light product up into the airlifting channel, and separated in the expantion chamber the husk will be lifted in to the after suction blower, and the light kernels will fall in to the middling outlet.
6. Outlet for middling product
7. False air intakes (2 pcs.)
For adjustment of air quantity in both the pre- and after suction systems.
7. Adjustment
Remote control of integral motor for shaker feeder, airlifting unit, pre suction, after suction and air velocity. The adjustment of the above is placed in a small control box, which is placed on the cleaner.
Features of Wheat Rye Sorghum etc. Grain Seed Fine Cleaner Machine
Easy and quick operation and screen changing. ( This Fine Seed Cleaner can, in a few minutes, be converted to different cleaning programmes, e.g.: Beans, lupine seed, maize Oats, wheat Rye grass, Red fescue Rape, peas, lentils)
The screen boxes are made of wear resistant plywood, which is approved for food
Screen cleaning with special rubber balls
Built-in light.
Durable surface of the machine owing to high-quality powder lacquering
Specifications of 5X-5 and 5X-12 Fine Cleaner Machine

Model	5X-5	5X-12
Dimension(L×W×H)	3200×1920×3600 mm	3790×1940×4060 mm
Overall weight	3250 kg	3600 kg
Rated capacity	5 t/h	12 t/h
Overall air volume	8200 m3	12520 m3
External air blower	4-72N0-6A, 7.5 kW	4-79N0-6A, 11kw
Vibration sieve motor(gear motor)	2.2 kW
Back lifting system motor	3.0 kW
Feeding motor	1.5 kW
Total Power	6.7 kW
Air Blower Type	centrifuge air blower
Top air blower Rotary speed	4-79NO6A,1400 r/min
Back lifting air blower Rotary speed	100~1000 r/min
Screen Type	piercing screen
Screen Dimension (L×W)	800×1250 mm
Frequency	300(80~400) times/min
Amplitude	30 mm
Layers and number	4 layers,7 pieces	5 layers,15 pieces
Screen number and type
level 1	1 piece round hole	3 pieces slot hole
level 2	2 pieces slot hole	3 pieces slot hole
level 3	2 pieces slot hole	3 pieces slot hole
level 4	2 pieces slot hole	3 pieces slot hole
level 5	null	3 pieces slot hole

Parameters of 5X-12 Fine Cleaner Machine

Capacity based on 15% H2O: 8% incoming up to 2% under 2.2 mm

Wheat, Rye, Sorghum and Malted Barley 12.0 t/h Oats, Maize, white Rice 9.0 t/h Soya, Peas, Rape, Coffee 9.0 t/h Paddy rice 7.0 t/h Sunflower, roasted Coffee 4.5-5.0 t/h Rye grass, clover 1.8-2.2 t/h

Dimensions:

Machine height (without fan) 3545 mm Machine length 3870 mm Machine width 1855 mm Height, standard inlet hopper 532 mm

Screen area: 15.0 m²

Square outlet pipes:

(Adapter to round available) a) from screens 160 x 160 mm b) from expansion chambers 240 x 240 mm

Motors: (standard):

Screen 2.2 kW Lifting air fans (integral) 2.2 kW Shaker feeder (integral) 0.75 kW Top fan (optional) 7.5 kW

Air volume:

Pre- and after suction 11000 m³

Total weight of cleaner:

Without top fan 3655 kg Freight volume 28 m³
