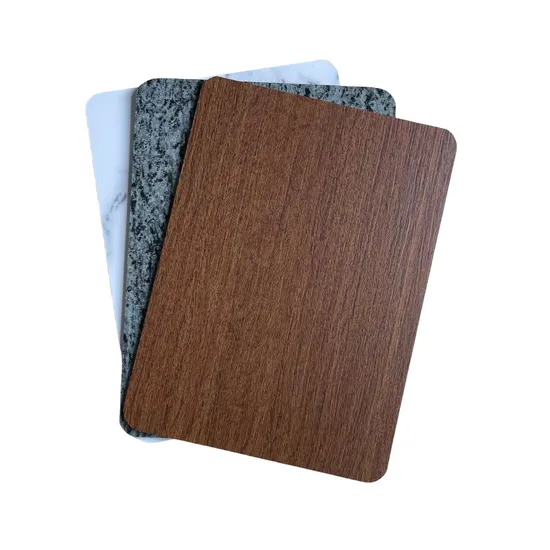

Wooden Color Aluminum Composite Panel ACP Acm for Curtain Wall

Product Description

Product Description
Aluontop PVDF(fluorine-carbon) Coating (Traditional PVDF),
Made of fluorine carbon resin, pigment, ester solvent, after high temperature roasting and baking, the paint is solidified to dry film with super resistance.
Traditional PVDF coating with KYNAR500 PVDF, two or three times for coating and baking has good properties of anti-acid, anti-alkali and is durable in atrocious weather and environment.
Weather resistence guarantee: keeping 15-20 years no unwonted fading.
Application: we recommend this panel applied for external wall cladding.
Product SpecificationAluontop ACP Dimensions:
Standard Width: 1220MM, 1250MM, 1500MM, 1550MM, 2000MM
Standard Length: 2440MM, 3050MM, 4880MM.
Available Widths & Lengths: any widths and lengths up to customers' requirement
Available Thickness: 2MM to 8 MM

Detailed Photos
Our AdvantagesAluontop ACP Advantages:
Excellent Coating
High Peeling Strength
Lightweight and Rigidity
Color Uniformity and Durability
Excellent Insulation of Thermal Conductivity
Anti-toxicity and Safety
Workability
Other specifications available, according to customers' requirements
1) Various colors available, according to customers' requirements
2) High impact resistance and good plasticity
3) Efficiently lightened burden for walls
4) Strengthened impact resistance for constructions
5) Great weather adaptabilities, high intensity, and easy maintenance
6) Perfect sound insulation, thermal resistance and fire retardant capability
7) Easy installation, apparently shortened installation time
8) Quality warranty: 20-year guarantee for PVDF aluminum composite panels
10-year guarantee for polyester aluminum composite panels
Product Parameters

Items PVDF ACM 4*0.3MM		Standard Index	Result	Conclusion
Appearance		Clean Surface without swell, scrath and aberration	Pass	Qualified
Deviation of Dimension		Deviation of Diagonal: ≤5mm	1mm	Qualified
Thickness of Coating		≥25um	27u(av.30)	Qualified
Hardness of Pencil		≥HB	H	Qualified
Toughness of Coating		≤2T	2T	Qualified
Impact Strength		50 Kg.cm Without paint off and crack	Pass	Qualified
Boiling Water Resistance		Boiling for 2h without change	Unchanged	Qualified
Acid Resistance		Immerse Surface with 5% HCI(v/v) for 24h without change	Unchanged	Qualified
Alkali Resistance		Immerse Surface with 5% NaOH(m/m) for 24h without change	Unchanged	Qualified
Solvent Resistance		Clean 100times without change	Bottom unrevealed	Qualified
Cleaning Resistance		≥10000 times without change	Unchanged	Qualified
Bend Strength		≥100Mpa	121Mpa	Qualified
Flexuous Modulus of Elasticity		≥2.0x10 4 Mpa	3.12x10 4 Mpa	Qualified
Cutting Strength		≥28.0 Mpa	32.0 Mpa	Qualified
180°Peel strength		≥7.0 N/mm	11.2N/mm	Qualified
Salt Haze Resistance(3000h)		Not less than Grade 2	Grade 1	Qualified
Artificial Weathering(4000h)	Artificial Resistance Aberration	≤4.0	1.24	Qualified

Production Process
Certifications
Packaging & Shipping

---
