Nfs Frame Screen

Product Description

NFS
Frame Screen

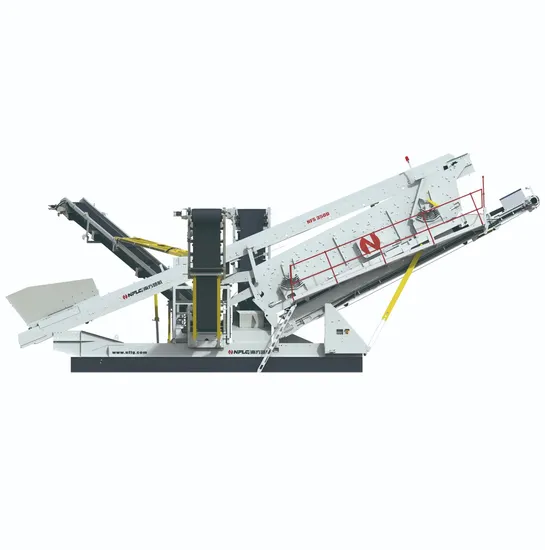

NFLG frame type screen, designed with three layers of screen box structure, and each layer of screen surface size are 6.1mx1.5m, can screen out 4 specifications of materials. The equipment has compact structure, convenient transportation,quick installation and debugging, simple and convenient operation. Product Description
Product Parameters

Model	NFS350D	NFS550D	NFSD1542
Crusher&screen	3NYK1560	2NYK1548	NYK1542
Screen layers	3	2	1
Throughout(mtph)	500	500	100
Maximum feeding size(mm)	150	500	100
Total power(kW)	64.5	64.5
state dimension(m)	15.1*21*6.4	15.5*12.8*4.7
Transportation dimension(m)	18*3.1*3.6	15*3.4*3.8	7.35*2.9*3.4m
Weight(t)	27 standard configuration	30 standard configuration	7.8 standard configuration

Detailed Photos
The screening area of the layer is 9m2, the processing capacity is large, the screening precision is high,
Screen box Angle, amplitude, vibration intensity can be adjusted, can meet different screening needs,
The screen is tensioned by side bolts, and the replacement and maintenance are simple and convenient,
External power supply drive, more green economy.
Company Profile
After Sales Service
FAQ
1 : Are you original manufacture?
A:Yes. we are NFLG, an official leading manufacture in construction machinery in China.
Core products cover:
A. Asphalt Mixing, Concrete Mixing and Dry Mortar Mixing (Engineering Mixing);
B. Mobile Crusher & Screen, Stationary Crusher & Screen and Sand Making and Shaping Equipment (Materials Processing);
C. Construction Waste Processing Solution, Waste Sludge & Soil Recycling Solution and Decoration Waste Processing Solution(Construction Waste Processing).
2:What kind of payment can be accepted?
A:Normally we can work on T/T term or L/C term.
3:Do you provide equipment operation training?
A:Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
4:What about the delivery time?
A:45 days after receving the deposit.
5:What about the warranty time?
A:12 months after shipment.
6.What about the Minimum Order Quantity?
A:The MOQ is 1 pcs.

---
