Floor-Type Horizontal Machining Center Horizontal Milling Center for Large Size Metal Processing

Product Description

Main Features

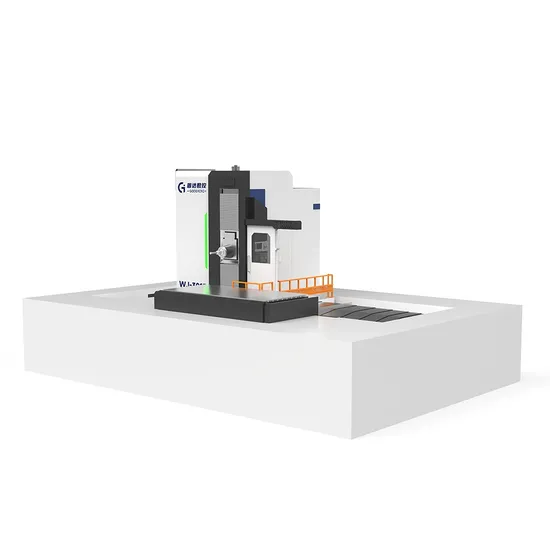

GooDa Horizontal Machining Center WJ-3015 adopts a floor-type structure with an X-axis moving column, surrounded by guideways on three sides.
The standard configuration includes a 22kW motor with high torque and high speed. The Z-axis square ram can extend up to 850mm.
It's a durable and efficient tool for rough machining, heavy cutting, and heavy loading applications in industries such as construction machinery, shipbuilding, aerospace, automobile, wind power, machine tools, automobile molds, and household appliance molds.
Core Components
Bed
The X-axis guideway spans up to 1463mm, ensuring stability for heavy cutting and heavy loading processing.
Column
The three sides of the column are designed with guideway, forming a three-sided enclosure structure for strong stability.
Spindle
The spindle employs imported large-diameter angular contact bearings, capable of withstanding high torque cutting forces during heavy cutting.
Head
The Z-axis utilizes a boxway hard guideway to ensure minimal vibration of transmission components during heavy cutting, enabling long-term efficient operation.
Applications
Our team of experts is ready to help you find the machine most suitable for your processing needs. Get Expert Assistance Now! Product Parameters

Model	WJ-3015
Category	Attribute	Value	Unit
X/Y/Z-axis	X/Y/Z travel	3000/1500/850	mm
	X/Y/Z Rapid feed rate	10/10/10	mm/min
	X/Y/Z Max. cutting feed rate	8/8/8	mm/min
Worktable	Worktable size	3200*1500	mm
	Max. load capacity	30000	KG
Accuracy	Positioning accuracy	0.02/1000	mm
	Repe at positioning accuracy	0.015/1000	mm
Oil tank capacity	Lubrication oil tank	4	L
Power requirement	Rated voltage	AC380V±10%	V
	Total power	50	KW
	Air pressure	0.6-0.8	Mpa
Size & weight	Machine net weight	29000	KG
	Machine space	7500*6000	mm

Company Profile
Factory Display

Certifications

FAQ
Q1. What is your minimum order quantity and warranty?
A1: MOQ is one set, and the warranty is 12 months.
Q2. What CNC system do you use?
A2: FANUC, SIEMENS, MISTSUBISHI, etc. It depends on your choice.
Q3. When is the delivery time?
A3: For conventional machines, we will deliver them within 30-45 working days after receiving your deposit; For special machines, the delivery time may be longer, and we will provide you with an updated timeline accordingly.
Q4. What is the packaging for the machines?
A4: Packaging: PE bag cover (inside), plywood box, and steel beam frame. Other packing methods are also available.
Q5. How can I select the most suitable machine?
A5: Please let us know your machining requirements or the machine size, and we can recommend the best model for you.
Alternatively, you can choose the exact model yourself. You can also provide us with the product drawings, and we will help you select the most appropriate machine.
Q6. What are your trade terms?
A6: FOB, CFR, CIF, or other terms are all acceptable.
Q7. What are your payment terms?
A7: We accept T/T with a 30% deposit when placing the order and the remaining 70% balance before shipment.
We also accept an irrevocable letter of credit (LC) at sight.
Production will begin once we receive the advance payment. When the machine is ready, we will send you pictures. After receiving the balance payment, we will proceed with the shipment.
Q8: Are you a manufacturer or a trading company?
A8: We are a combined manufacturing and trading company, specializing in the innovative development and production of machine tools, with extensive experience in global exports. We warmly welcome you to visit our factory.
Q9: Can you provide OEM services?
A9: Absolutely. We are happy to create a customized plan based on your requirements and offer the best service to meet your needs.
Q10: How can we receive training for the machines?
A10: You can send your team to our factory for free training, or we can arrange for one of our engineers to travel to your location for on-site training.

---
