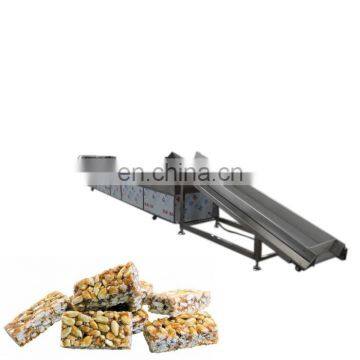

Energy bar making machine / Muesli bar making machine / Cereal bar production line
Introduction :
Automatic laying material,pressing flat,cooling,cutting and forming
The conveyor belt speed can be adjusted
About the same width product,the length and thickness can adjust arbitrarily;
About the other width product,just change the knife shaft.
a) Cereal Bar Making Machine is mainly used to cut the mixed cereals products into required sizes and cool them down.
b)Cereal Bar Making Machine is controlled by two inverters which allow it finish the cross cut by one machine.
c.) Strong rollers of Peanut Candy Bar MakingMachine make the mixture quite flat and stick to each other tightly, avoid splitting.
d.)PLC Touch Screen controller box of Peanut Candy Bar Making Machine allows operator to set the required cutting length and width
in advance, quite simple to operate.
e.) Machine parts which contact the foods of Peanut Candy Bar MakingMachine are made of food grade plastic, and the machine body
cover is made of stainless steel which is all suitable for food processing safety.
1. Large air puffing machine
Technical parameters:
Electric pressure: 380V 50Hz Power: 0.75 kw Production capacity: 50-60kg/h Weight :480kg
Size: 1650*800*1350mm
Purpose:Used for the rice,corn,wheat,barley,beans and other food’s puffing.
Characteristics:
1. Easy operation,power saved,save times and high production.
2. With seismic thermometer and equipment tank gauge,automatic measurement of the temperature and pressure within
2. Sugar boiled pot
Proposal: We advice using two set boiled pots. It can alternate use, improve efficiency. (according to your requirement)
Device parameters:
Volume:200L
Inside Diameter:840mm
Size:1470*905*990mm
3. Mixing machine
Device parameters
Power:1.1kw Voltage:380V/50HZ
Size:800*900*1400mm Capacity:20KG/once
Equipment Introduction The surface is stainless . The pot use double-deck,have heat preservation effect .The material in the pot is teflon,it has advantages.
(1)Resist temperature(2) Corrosion Resisting (3) Non-adhesive(4) Not Deformation
4. Ascension conveyor
Device parameters
Power:0.37kw
Voltage:380V/50HZ
Size:2500*820*1080mm
304 The surface is austenitic stainless
The conveyor belt material is PVC
Conveyor the material to the automatic cutting machine
5. Automatic cutting and forming machine
Device parameters
Power:2.2kw
Voltage:380V/50HZ
Size:6000*1200*1200mm
Capacity:2-8t/8h
Automatic laying material,pressing flat, cooling, cutting and forming
The conveyor belt speed can be adjusted
About the same width product,the length and thickness can adjust arbitrarily;
About the other width product,just change the knife shaft.
6. Cooling conveyor
Device parameters
Power:0.37kw
Voltage:380V/50HZ
Size:2500*820*720mm(according to your requirement)
7.Package machine
Voltage:220V
Power:2.5kw
Packing speed:50-300pcs/min
Packing length:50-300mm
Packing width:50-310mm
Packing height :5-60mm
Size:3800*780*1500mm
CEREAL BAR PRODUCTION LINE
|
|
1
| Large air puffing machine
|
2
| Sugar boiled pot
|
3
| Mixing machine
|
4
| Ascension conveyor
|
5
| Automatic cutting and forming machine
|
6
| Cooling conveyor
|
7
| Package machine
|
Detailed Images
Related Products
Packing&Shipping
1.We can load container at:qingdao,shanghai ,ningbo,tianjin,guangzhou etc.
2.Orange provide shipping method:Courier service,Air transport,Sea Transport
3.Can accept oder:Full container cargo load,Less container load
4.Our service:EXW,FOB,CIF,CNF,Door to Door etc.
5.We always choose the most economical and reliable shipping company to make sure you receive the goods in time.
6.The tracking number will be provided to you once the consignment is shipped.
After Sales Service
1.All the products have one year guarantee.
2.Providing professional installation instructions and video of troubleshoot.
3.We supply after sales service for 24 hours, 7 days per week. Customer can contact us any time.
4.When some problems can’t be solved by customers, our engineer can go to door to support.
