Basic Info.
Controlling Mode
Artificial
Automatic Grade
Automatic
Certification
GS, CE, RoHS, ISO 9001
Name
Cylindrical Grinding Machine for Sale
Max. Weight of Work Piece :150kg
Center Height :180mm
Distance Between Centers
1000,1500,2000,3000
Max Weight of Work Piece
150mm
Swiveling Angle
90 Degree
Wheel Spindle Speed
1670r/Min
Wheelhead Rapid Travel
50mm
Transport Package
Wood Case
Specification
M1432B M1450 M1463 MW1420 M1450A
Production Capacity
40PCS/Month
Product Description

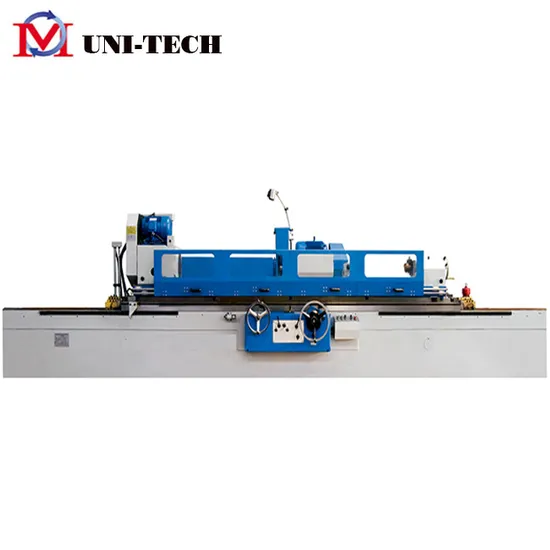

Universal Cylindrical Grinding Machine M1450
Universal Cylindrical Grinding Machine specifications:
| Description | Unit | M1450 |
| l General capacity |
| Distance between centers | mm | 2000 |
| Center height | mm | 270 |
| Dia. Ground(O.D) | mm | 25~500 |
| Dia. Ground(I.D) | mm | 30~200 |
| Max. length ground(O.D) | mm | 2000 |
| Max. length ground(I.D) | mm | 320 |
| Max. weight of work piece | Kg | 1000 |
| l Workhead |
| Swiveling angle | ° | +90° |
| Center taper(MT) | MT | 6 |
| Spindle speed | r/min | 50HZ:20~224 |
| l Wheel head |
| Wheel spindle speed | rpm | 1330/665 |
| Wheelhead rapid travel | mm | 100 |
| Max. travel | mm | 370 |
| Swiveling angle | ° | -30° |
| Hand feed per. rev | mm | rough:4 fine:0.5 |
| Hand feed per gra. | mm | ough:0.02 fine:0.0025 |
| wheel size | mm | 500×75×305 |
| Wheel peripheral velocity | mm | 35/17.5 |
| l Internal grinding device |
| Spindle speed | r/min | 10000 |
| wheel size | mm | max:175×32×32 |
| min: 30×25×10 |
| l Table |
| Hand feed per. rev | mm | 5 |
| Max. swiveling angle | clockwise | ° | 2° |
| anticlockwise | ° | 5° |
| Longitudinal traverse speed of table | m/min | 0.1~3 |
| l Tailstock |
| Center tape(MT) | MT | 6 |
| Quill travel | mm | 70 |
| l Motor |
| Wheelhead motor power | Kw | 5 |
| Internal grinding | Kw | 1.5 |
| Workhead motor power | Kw | 4 |
| l Machine |
| Gross weight | t. | 13 |
| Packing dimension | cm | 610×270×210(2000) |
Universal Cylindrical Grinding Machine standard accessories:
Coolant tank,
wheel periphery dresser base( without diamond pen),
flange and wheel exactor
standard grinding wheel
balancing arbor
leveling wedge
working lamp
open steady rest
internal grinding attachment
Universal Cylindrical Grinding Machine optional accessories:
balance stand
Coolant tank with paper filter
Coolant with magnetic separator and paper filter
Radius wheel dresser
End wheel dresser
If you are interested in cylindrical grinding machine, pls contact us
>>
