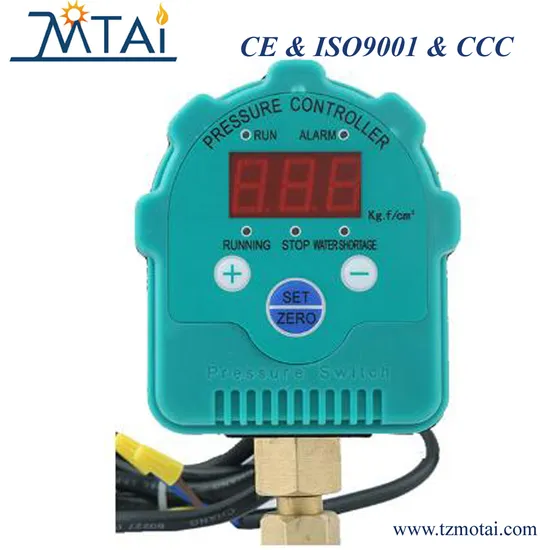

APC-10A/C Micro Air Compressor/Water Pump Pressure Switch

Product Description

Microcomputer PumpDigital Display Pressure Controller
Product Features
1.APC-10A/C Pressure controller has built-in Ceramic Pressure Sensor,which could withstand high voltage ,High Temperature-Resistance and could show the pressure accurate and stable.
2.Humanization Design .Start Pressure ,Current Pressure ,Stop Pressure could shift normally
3.It could casually set the start pressure between stop pressure ,which could prevent the pump start up frequently
4.This Pressure controller could automaticly stop the pump if no water within 3mins,
start the pump once have water and it also could automaticlly check circularly the water supply in 30mins
5.The Controller automaticlly starts pump up intervally 24hours , operating 5 seconds every time ,which could effectively prevent the pump to be rusted if long time no working
Application Range
APC-10A/C is suitable for Pipeline pump ,Booster pump ,self-priming pump ,submersible pump ,circulation pump ,especially suitable for Solar heat pump ,
Air-source heat pump, No tower water supply ,etc .
Technical Parameters

Product name	Pressure Switch
Usage/Application	Pump and other pressure control system
Material	ABS+Brass
Max.Working Pressure	8Bar
Rated Input Voltage	220V;110V(Customizable)
Rated Output Voltage	220V;110V(Customizable)
Frequency	50HZ&60HZ
Connection Size	1/4;3/8;1/2
AC Plug	Customizable
Color	Green(Available)
Brand Name	TZMOTAI
Packing	Carton (20pcs in 1 Carton)
Place of Origin	Taizhou,China

Production Process
FACTORY ADVANTAGE:
Pre-sales service:
•We are a sales team, with all technical support from engineer team.
•We value every inquiry sent to us, ensure quick competitive offer within 24 hours.
•We cooperate with customer to design and develop the new products. Provide all necessary document.
After-sales service:
•We respect your feed back after receive the motors.
•We provide 1years warranty after receipt of motors..
•We promise all spare parts available in lifetime use.
•We loge your complain within 24 hours.

---
