Basic Info.
Model NO.
Concrete Mixing Plant
Machining Process
Hydraulic
Certification
ISO9001: 2000, CE
Product Description

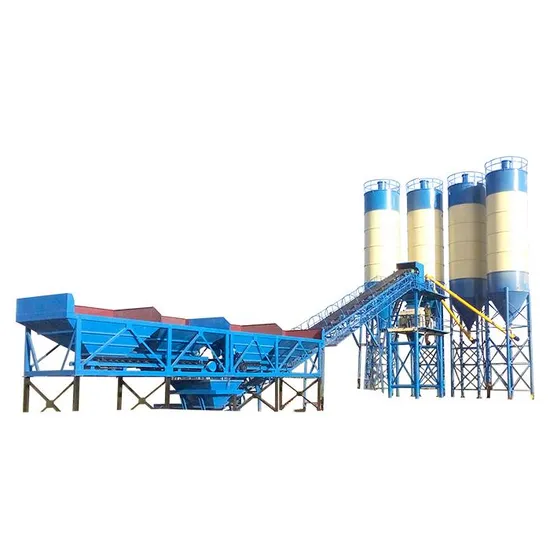

CONCRETE BATCHING PLANT READY MIX CONCRETE MIXING PLANT
Brief Introduction:
Stationary concrete batching plant is widely used for small or medium-scale building construction, bridge and road construction, and prefabrication of concrete products. It has the advantages of less land occupancy, quick installation and convenient transportation.
Features:
1.This bucket type concrete mixing plant adopts twin shaft concrete mixer, it is with strong mixing power, high mixing evenness and high productivity.
2.The mixing blade and liner is made by high wearing-resistance chromium-manganese alloy, which is more durable with long lift span.
3.The PLD series aggregates batching machine have accumulated weighing or pneumatic independent weighing system for options.
4.The electronic weighting system has a buffer device and automatic volume compensation with high accuracy.
5.The complete set concrete batching plant use full auto control models by computer or full auto SIMENS PLC+PC model, meanwhile, we have PLC semi-auto control system or manual control system for options.
1.HZS BUCKET TYPE STATIONARY CONCRETE BATCHING PLANT
PEODUCT PARAMETERS:
Model
| HZS25
| HZS35
| HZS50
| HZS75
|
Capacity (m³/h)
| 25
| 35
| 50
| 75
|
Mixer
| JS500
| JS750
| JS1000
| JS1500
|
Aggregate Bin
| PLD800
| PLD1200
| PLD1600
| PLD2400
|
Discharge Height (m)
| 3.8
| 3.8
| 3.8
| 3.8
|
Cycle Time (s)
| 72
| 72
| 72
| 72
|
Weighing Accuracy
(%)
| Aggregate
| ±2
| ±2
| ±2
| ±2
|
Cement
| ±1
| ±1
| ±1
| ±1
|
Water
| ±1
| ±1
| ±1
| ±1
|
Additive
| ±2
| ±2
| ±2
| ±2
|
2.HZS BELT TYPE STATIONARY CONCRETE BATCHING PLANT
PEODUCT PARAMETERS:
Theory Productivity(m3/h)
| HZS60
| HZS90
| HZS120
| HZS180
| |
| 60
| 90
| 120
| 180 | |
Standard Discharging Height(m)
| 4.0
| 4.0
| 4.2
| 4.2
| |
Mix Cycle Time(s)
| 60
| 60
| 60
| 60
| |
Total Power(KW)
| 115
| 195
| 220
| 275
| |
Mixer Model
| JS1000
| JS1500
| JS2000
| JS3000
| |
Batching Machine Model
| PLD1600 pneumatic
| PLD2400 pneumatic
| PLD3200 pneumatic
| PLD4800 pneumatic
| |
Feeding Method
| Belt
| Belt
| Belt
| Belt
| |
Weighing Accuracy
| Aggregate
| ≤2
| ≤2
| ≤2
| ≤2
|
Cement and Ash Coal
| ≤1
| ≤1
| ≤1
| ≤1
| |
Water
| ≤1
| ≤1
| ≤1
| ≤1
| |
Additive
| ≤1
| ≤1
| ≤1
| ≤1
| |
MOQ
| 1 set
| 1 set
| 1 set
| 1 set
| |
Delivery Port
| Main Port of China
| | | | |
>>
