Product Description
Product Description

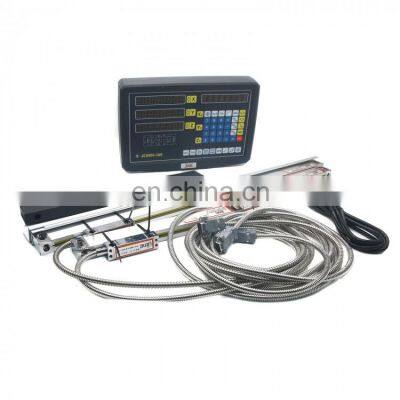

High Precision 5um 3 Axis Digital Readout Dro for Milling Lathe Machine Product Description Tips:This kit includes 3 pieces 5 micron linear scale and 1 pieces 3 axis DRO .It is compete dro kits with parts to fit mounting.The linear scale has to chosen from 50-1000mm travel length. there are 50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 850mm, 900mm, 950mm and 1000mm available for this order, you may choose any 3 pcs linear scales within these and let we know via ebay massage or ebay order notice.Description:- English version- The digital readout which producted by our company is a high precise instrument which can be used on lathe,grinding machine,milling machine,boring machine and EMD TO make the position detection.Functions:- Zero clearing- Reset- mm/inch mode- ABS/INC coordinate conversion- 200sets sub datum- Power off Memory;- Center of1/2- Liner error compensation- Sleepping mode- Clear 200 sets Sdm datum;- ABS/INC mode- Calculator- Drilling of circumference- Drilling of oblique line- Machining of inclined plane- Machining of circular arc- Lathe function(match)- Rectangular lumen gradual processing- Digital filtering- R function 21 R/D function- Radius/Diameter function (lathe machine )- Z+Y sum (lathe machine)Parameters:- Voltage Range: AC 85V~260V/50HZ~60HZ- Power Consumption: 25VA- Coordinates: 1/2/3/4- Display: 8 digits display- Input Signal: TTL square wave EIA-442- Input Signal frequency: 100KHZ- Operation Keyboard: pressure sensitive key padParameters of Linear Glass Scales- High Precision linear scale- Resolution : 5um (0.005mm) 0.0002"- Signal : TTL square /wave EIA-442- Grating pitch: 0.02mm (50LP/min)- Accuracy: ±0.005 mm or 0.0002" (at 20 deg C)- Reference marks at interval of 50mm- Response Speed: 60m/min or 40ins/sec- Cable length: 3 Meter Scale Length available- Physical length is differnt from the travel length 100,150,200,250,300,350,400,450,500 ,550, 600,650,700,750,800,850,900,950,1000mm 5um.- Buyers may choose any scale measuring length under 1000mm at this price.In fact,The scale can be made from 0-3000mm.Scale length above refers to the real travel of the linear scale. Actual physical length is 141mm longer than travel. One inch equuals to 25.4mm.Package Contents:- Digital Readout- Scale * 3Detail photoFAQ FAQ Q1. Can I have a sample order?A: Yes, we welcome sample order to test and check quality. Q2. What about the lead time?A: Samples arrived often need 3-5 days. Q3. Do you have any MOQ (minimum order quality)limit?A: Low MOQ, 1pc for sample checking is available. Q4. How do you ship the goods and how long does it take to arrive?A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional. Q5. How to proceed an order?A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production. Q6. Is it acceptable to print my logo on the product?A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample. Q7: Do you offer guarantee for the products?A: Yes, we offer one-year warranty for our products. Q8: How to deal with the flaw?A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8% Packaging & Shipping Packing&ShippingPackage: Normally we use the standard exporting packaging. We also can according to clients' request . Shipping : 1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.2. By Air: Delivery from the Shanghai airport to customers’ destination city air port.3. By Sea: Delivery from the Shanghai sea port . Company Information Company informationTZT has been speciliazing in Business & Industry,Hobbies & Toys,CNC Products and Health care supplies for over 5 years.We committed to enhance customer satisfaction by continually improving the process with a vision of expertise in the field. Aiming to provide high quanlity products and great service for buyer,we are strict on product quanlity control and offer instant communication service.Welcome to contact us!Our Advantages:- Source only the best consumer goods and ensure the highest quality.- Streamline the buying and payment process, and make it as easy as possible.- Help the customers all over the world discover products and manufacturers in China.- The Shortest order processed time and speed delivery
>>
