Industrial 3-Phase Immersion Heaters for Water Tanks

Product Description

Industrial 3-phase Immersion Heaters for Water Tanks
Flanged heaters are commonly used in many chemical, petroleum and water based applications.JAYE flanged heaters allow the flexibility of using many different alloys to help resist corrosion and maintain life longevity of the flanged heating element Steel flanges are typically used for lubricant oils, heavy and light oils, waxes as well as mildly corrosive liquids and low flow gas heating.

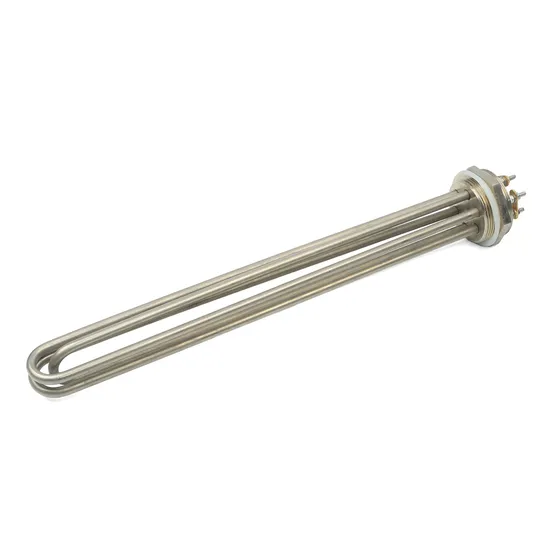

Flange immersion heaters are constructed of hairpin bent tubular heater elements brazed or welded into ANSI standard flanges or plate flanges of various shapes and sizes. ANSI flange heaters are typically used for large volume, high power and/or higher pressure applications. Plate flange heaters are typically custom designed for use in smaller pieces of equipment such as boilers and chillers.
There are two connections, one thread connection, commonly used specifications size G1 / 2--2 inch, the second is the flange connection. Also known as the flat flange connection . Common specifications size DN50mm - DN300mm, flange electric tube flange commonly used materials are brass, stainless steel, 10 steel, pipe material commonly used 10 steel, stainless steel, copper. Common specifications, 1.5KW, 3KW, 6KW, 9KW , 12KW, 15KW, 30KW to 500kw, etc. Used for electric water boilers, electric boilers, solar energy systems, solar water tanks, chemical pools, baths, swimming pools and other places to be heated.
Features:

1. ANSI flanges 3" to 14" standard; up to 40" available, power ratings from 1kW to 1 MW+ and custom fit to application demands

2. Standard 150lb flanges; 300lb & 600lb readily available, ensures proper pressure rating for your needs

3. Copper, steel, SS and Incoloy® and other heater sheaths available, custom tailored to application requirements

4. Element Spacers & Supports, maximizes heater life and application performance

5. Recompacted element bends provide longer life by ensuring insulation integrity

Product Applications: Process Air & Gas Heating Process Air & Gas Heating
Process Chemical Reactors Process Chemical Reactors
Boilers and Water Heating Boilers and Water Heating
Rinse Tank Heating Rinse Tank Heating
Parts Cleaning Solutions Parts Cleaning Solutions
Lube Oil & Fuel Oil Heating Lube Oil & Fuel Oil Heating

Order Guide:
1. wattage and voltage
2. the diameter and heated length
3. the heating medium, Water or Oil heating
4. maximum temperature and how long required to reach your temperature
Certificate:
FAQ

(1). Q: Can you give me a discount price?
A: It is depending on the quantity. The larger the quantity is, the more discount you can enjoy.
(2). Q: How can I get a sample?
A: Normally For most our products can be sent free of sample charge if the quantity is small and customers only need to bear the shipping charge, or you can provide your DHL,FEDEX,EMS,UPS courier account number to us. If the quantity is big, we need to charge a sample fee.
(3). Q: Why does your price a bit higher than other Chinese suppliers?
A: We are focusing on manufacuturing high quality performance products in order to establish a long term and friendly cooperation with all customers.
Our price maybe not the lowest, but our cost performance is the highest.
(4). Q: How can you guarantee the quality of mass production keep the same with the sample sent to me before?
A: Our warehouse staff will leave another same sample with your company name marked in our company before sending the samples to you to ensure the same production as the samples.

---
