Fully Automatic Facial Tissue Box Packing Machines

Product Description

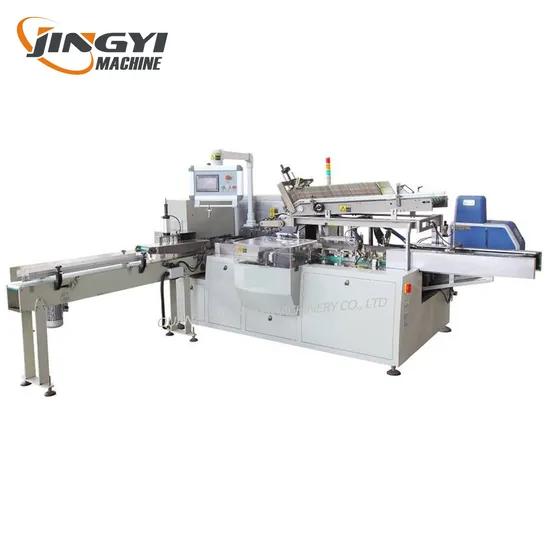

Fully automatic facial tissue box packing machines
Five innovations of the machine:
1,High output. The stable speed can reach 80 boxes/minute.
2,Complete functions. The machine is suitable for various applications such as semi-cover/full-cover, or high paper and low box/low paper and high box.
3,Rapid production changing. It only takes 10-20 minutes to change the specifications.
4,Convenient operation. It is easy to control the servo paper feeding and PLC control system.
5,Low cost. The imported glue machine with a nozzle of 0.3mm is adopted and the glue-spread is little.
Application range:
It is suitable for automatic boxing of facial tissues, square tissues, pocket tissues,cotton tissues etc.
Main performances and structure features: Packing forms such as automatic feeding, box opening, boxing, batch No. printing, glue spreading, box sealing, etc. are adopted. Featured by compact and reasonable structure, simple operation and adjustment. Servo/step motor, touch screen, PLC control system and man-machine interface display make operation more clear and convenient. With high automation degree, the machine is more user-friendly. The automatic material arranging and conveying mechanism is adopted to facilitate linked production with automatic production line, which can greatly reduce labor cost. The photoelectric eye automatic detection tracking system is adopted. No boxing is made if the bag is empty, so as to save packing materials to the utmost extent. With wide packing range and convenient adjustment, fast switching among various specifications and sizes can be realized. Change of specifications does not need change of molds, but can be realized through adjustment. Automatic stopping is available when the material boxing is not in place, and the main driving motor overload protection device is used, so that the machine is safer and more reliable. According to customer requirements, the upturning type safety protective cover is adopted, which is featured by simple operation and beautiful appearance. Performance technical parameters:

Item/model		JY-MJZ-HZB
Paper quality of carton		300-400g/m3
Maximum packing specification		L240mm×W120mm×H90mm
Packing speed		30-80 boxes/minute
Hot melt machine power		2.32KW
Motor power		2.74KW
Total power		5.1KW
Power supply type		3phase 4wire 380V 50Hz
Machine noise		≤80dB
Air supply		0.5-0.8 Mpa
Air consumption		120-160L/min
Outline dimensions	Main machine	L3250×W1650×H1800mm
	Conveying mechanism	L4000×W660×H1200mm
Machine weight		1500Kg

About Us:
Quanzhou Jingyi Machinery Co.,ltd is professional manufacturer for paper machines:
1) Toilet Paper Machine and kitchen towel machine (1.2m--2.8m width of jumbo roll);
2) Facial Tissue Machine (2-14 lanes);
3) Napkin Paper machine;
4) Hand Towel Paper Machine;
5) Handkerchief Paper Machine;
6) All kinds of Paper Cutting and Packing Machine.
Our Workshop:
About the package and shipping:
Our Service:
Pre-Sale Services: We will reply your inquiy within 24 hours. According to your actual situation and budget, we will provide professional consultation and best solution with strong technical support.
After-Sale Service:
1.We will send the engineer or technician to your factory for installation, debugging and training the workers. Also welcome you come to our factory for learning the machine operation.
2.Warranty: One year guarantee, service for ever. Our technical team will give you 100% rest assured global presence service if necessary.
3.Wearing parts of machine will be sent to customers with a good preferential price.
Contact Us:
Quanzhou Jingyi Machinery Co.,ltd
Add: Jiangnan Street,Licheng District, Quanzhou,Fujian
Name: Fiona Hou

---
