Syi Factory Directly Sale Ductile Iron Tapping Saddle with Ss Band Strapped for Di/Steel Pipe

Product Description

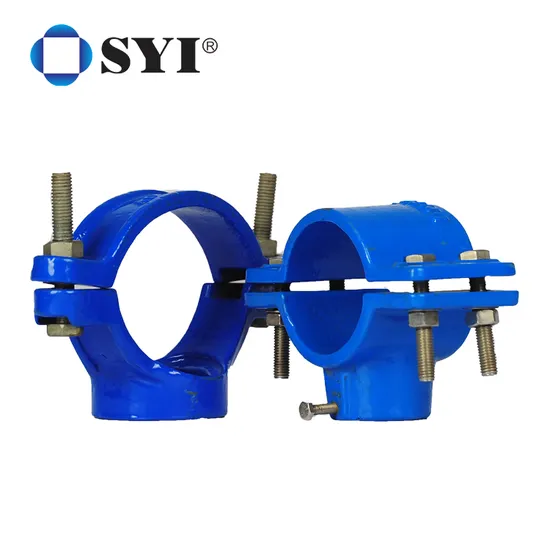

SYI Ductile Iron Saddle Clamp Description The simplicity and versatility of SYI Saddle Clamps can make it very easy installed and can be installed under pressure of the whole pipeline, eliminates the cost of shutting down the entire pipeline supply, and no pipeline interruption, brings great convenience to customers.

Material: Body:Ductile Iron grade 500-7/450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM A536 Gasket:Rubber E.P.D.M./NBR/SBR in accordance with EN 681.1 Bolts And Nuts:Carbon steel grade 8./6.8/4.8 with dacromet coating/galvanization
Working Pressure: 16 Bar or 250PSI
Coating
External coatings	Internal coatings
liquid epoxy resin painting epoxy applied by FBE according to customers' requirements	liquid epoxy resin painting epoxy applied by FBE according to customers' requirements
Reference Rules:Designed and tested in accordance with EN14525, ANSI/AWWA C219 and EN545
Accessories:gasket, stub(screw) bolts, washer, nuts etc. The accessories for Dismantling Joints are usually supplied by assembled on the body.

Feature:
1.Saddle Clamps, are used to make permanent (hot) tapping on existing or new pipelines for water and
gas.
2.The gaskets positioned within the saddle have a good performance of sealing.
3.The simplicity and versatility make it very easy to install and can be installed under pressure of the whole pipeline,eliminates the cost of shutting down the entire pipeline supply, and no pipeline interruption, brings great convenience to customers.
