Belarus Mtz-80 Mtz-82 Tractor Hydraulic Steering Pump 060-100cc 060-160cc

Product Description

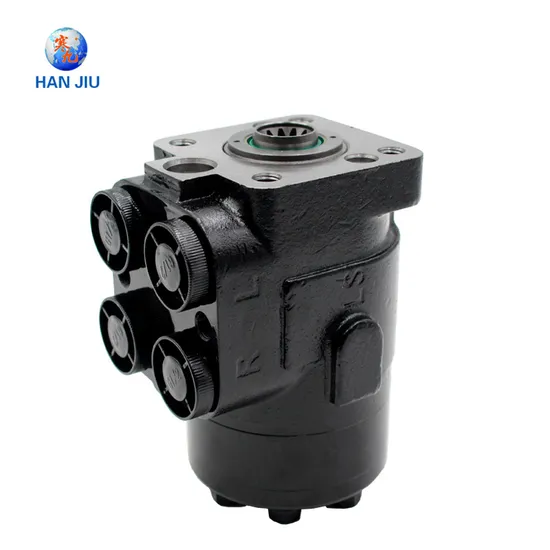

Belarus MTZ-80 MTZ-82 Tractor Hydraulic Steering Pump 060-100cc 060-160cc
1. Characteristic Features

060 Orbital Steering Valve is with relief valve ,suction valve, inlet check valve intergrated.

Different valve can be assembled freely,compact ,more convenient ,fitting.

European and American standards.

2. Specification

Parameters	Series 060-*-***-**-*
Function code	1,2,4							1,4
Displacement (mL/r)	50	63	80	100	125	160	200	250	280	315	400
Rated Flow (L/min)	5	6	8	10	12.5	16	20	25	28	32	40
Max.input pressure(Mpa)	16
Relief Valve Pressure Settings ( MPa)	06,07,08,10,12,14,15,16
Shock Valve Pressure Settings ( MPa)	12,13,14,16,18,20,21,22
Max.cont.back pressure	2.5
Weight(kg)	5.75	5.81	5.89	5.96	6.1	6.3	6.5	6.73	6.91	7.1	7.5
Dimension L (mm)	130	132	134	137	140	145	150	156	161	166	176

3. Application

Massey Ferguson 100 series, 200 series, 500 series, 600 series
David Brown 880, 1194, 1210, 1212, 1294, 1394, 1494, 1594
Landini 30 series, 40 series, 50 series, 60 series, 70 series
Fiat M100, M115, M135, M160, L60, 65
New Hollad TL65, TL70, TL80, TL90, TL100, TM115
Belarus MTZ-80, MTZ-82, T-16, T-25, T-150
Product application
Shijiazhuang HanJiu technology co., LTD., is specialized in the production of BM series cycloid hydraulic motor, the BZZ redirector enterprise, my factory has dozens of high-quality, professional engineering and technical personnel, and more than in 2010, has introduced the most advanced production equipment, is in northern China's largest factories, production of more than 300000 units a year.
My factory specializes in designing and producing the motors and steering gear of any type, from large to small, from low to high, and so on. And can replace danfooss, Eatn, M+S series models. Products are widely used in engineering machinery, mining machinery, metallurgical machinery, petroleum machinery, agricultural machinery, injection molding machinery, fishery machinery and other fields.
My factory take the good faith first, quality first for the purpose, from the employee on-boarding, raw materials into the factory, from parts processing, assembly proposal until products, has a relatively perfect system of product quality. And through CE certification. Our factory is dedicated to the establishment of an internationally renowned brand, looking forward to the long-term cooperation with more demand of hydraulic products.
Hanjiu: Hydraulic gear pump for any hydraulic system, our company uses high-end machine tools, excellence, the most humane service, manufacture and service the world, with good products and services to serve the world, welcome advice.

---
