Product Details
Product Description
Product Description
Product Description

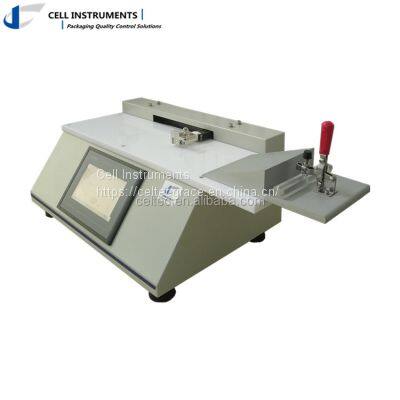

Stretch Wrapping Film Peel Cling Tester measures the cling between two layers of film and help to determine the property of stretch wrap material ability to adhere to it.
It complies with ASTM D 5458, BB/T 0024.
Test Range
| 5N or as required
|
Resolution
| 0.01N
|
Elongations Lines
| 50%, 100% and 200%
|
Test Speed
| 1-500 mm/min
|
Material
| Wrapping film, cling film
|
Printing
| Microprinter
|
Control
| PLC and HMI touch screen
|
Accuracy
| 0.5 F.S.
|
Power
| 100~240V
|
Detailed Images
Features
* 7 inch TFT touch screen operation (human machine interface)
* PLC control unit for stable performance
* Real time display of test curve, peak value recording.
* Test speed is adjustable.
* Different connection of loadcell with sample eliminates the interference caused by the friction and gravity of pulley and
string, which are commonly used in traditional method.
* Precision ball screw for accurate speed & displacement.
* Limiting device and automatic returning.
* Supportive lines of elongation rates, 50%, 100% and 200% engraved
* Microprinter
* Coefficient of friction function can be added (Optional)
Standards
ASTM D5458-95(2012), Standard Test Method for Peel Cling of Stretch Wrap Film
