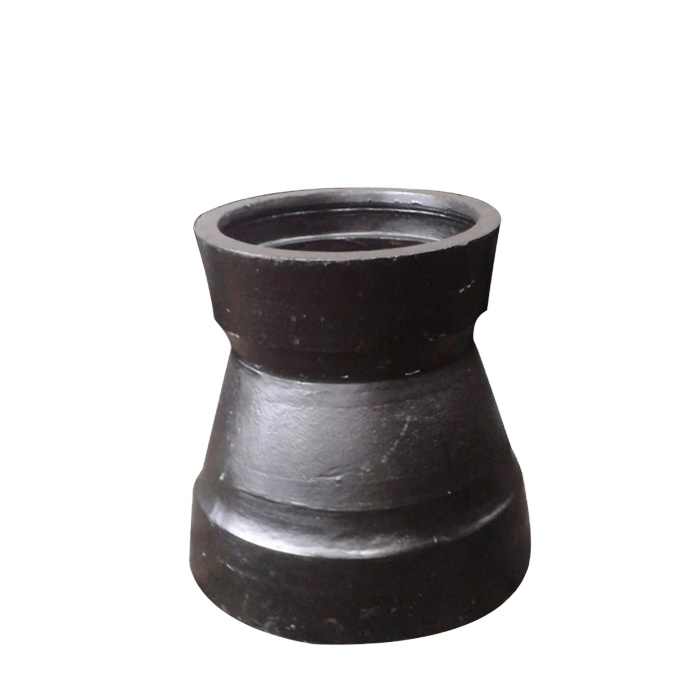

Class K12 Ductile Iron Pipe Fitting Tyton Double Socket Concentric Taper for PVC pipes

Product Details

Product Description

Product Description
Product Description
1. Briefs :
* mainly used for transferring the drinkable water, waste water and for irrigation
* working pressure PN16
* Standard: ISO2531/EN545/EN598/AWWA C110/C153
2. Surface treament :
Metallic zinc spray with Bituminous Coating (Outside)
Cement mortar lining (Inside).
Epoxy power coating available upon your request.
3. Dimension Sheet :

S/N	DNxdn	S	S1	t
	mm	mm	mm	mm
1	100x80	150	150	90
2	150x80	200	150	190
3	150x100	200	150	150
4	200x100	200	150	250
5	200x150	200	200	150
6	250x150	200	200	250
7	250x200	200	200	150
8	300x150	200	200	350
9	300x200	200	200	250
10	300x250	200	200	150
11	350x200	200	200	360
12	350x250	200	200	260
13	350x300	200	200	160
14	400x250	200	200	360
15	400x300	200	200	260
16	400x350	200	200	160
17	450x350	200	200	260
18	450x400	200	200	160
19	500x350	200	200	360
20	500x400	200	200	260
21	500x450	200	200	160
22	600x400	200	200	460
23	600x500	200	200	260
24	700x500	200	200	480
25	700x600	200	200	280
26	800x600	200	200	480
27	800x700	200	200	280
28	900x700	250	200	480
29	900x800			280
30	1000x800	250	200	480
31	1000x900	250	200	280
32	1100x1000	250	250	280
33	1200x1000	250	250	480
34	1400x1200	300	250	360
35	1500x1400	300	250	260
36	1600x1400	300	300	360
37	1800x1600	380	300	360
38	2000x1800	380	380	360
