rail fine profile grinding machine for track maintenance

Product Details

Product Description

Product Description

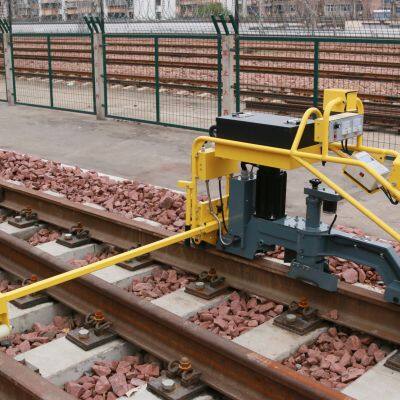

CNC Rail profile grinding machine
This rail profile grinding machine is mainly used for forming and grinding operations of railway rail welding joints and rail surface repairs. The development and application of the CNC feed unit realizes the intelligent control of the grinding wheel feed. Significantly improve the profiling accuracy and polishing efficiency.
PRODUCT SPECIFICATIONS

Model	NGM-5.1
Engine	HONDA GX270
Power supply	5.1kw
Spindle revolution	4100r/min
Grinding stone inclination	±90°
Grinding stone feeding stroke	42 mm
Grinding stone feeding accuracy	0.1 mm
Grinding stone specification	φ125x65 mm
Weight	100kg

Package & Delivery
Export Standard Wooden box + pe bag+paper carton, 1 unit/Wooden box , Wooden box:151*60*95cm G.W: 100KG
Certificate
Company Profile
Wuhan Linkage track Co., Ltd. established in 2022, we are a rapidly growing company involved in the design and manufacture of an extensive range of equipment for the railway industry.
We started our business from producing railway measurement device in 2003 and wide our product range to small rail machines like rail cutting machine ,rail grinding etc .
Our company has expanded its operation to include three branch office , location facilitates in Xiangyang ,Wuhan and Guangzhou China.
Now, Linkage family of brands provides a diverse and comprehensive product line for different markets and demands.
Our products are sold in more than 50 countries and regions worldwide. Market acceptance is backed by ISO9001, European CE certification .

---
