Industrial Touch Panel Pc

Product Details

Product Description

Product Description

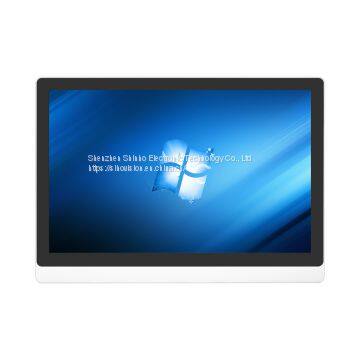

Industrial Touch Panel Pc
FEATURES:
1. Super thin and ultra narrow bezel, Fully enclosed design, the whole PC is dustproof.
2. Seamless design, front panel IP65 waterproof.
3. Full aluminim alloy enclosure with paint spraying and dull polish, anti-EMI, corrosion resistance, excellent performance of heat dissipation.
4. Industrial LCD panel, wide viewing angle, high nits, true color.
5. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
6. High performance motherboard, 7x24 continuous operation.
7. Support wall mounting, desk stand, embedded mounting.
8. 3 COM optional, RS232/RS422/RS485 optional.
industrial touch screen pc Specification:

PC
CPU	Intel® Celeron J1900, quad core, 2.0GHz, fanless
Chipset	Intel ValleyView SSA-CUnit
Memory	2G DDR3
Hard Drive Capacity	32G SSD
Hard Drive Optional	SSD: 64G, 128GB, 256GB
	HDD: 500GB, 1TB
Graphics	CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio	Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network	1xRealtek RTL 8111E Gigabit Ethernet controller
Wireless Network	WIFI
I/O Interface	2xUSB 2.0, 2xCOM RS232
	1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC
Operation System	Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD panel
Panel size	8"-21.5"
Support Color	16.7M colors
Brightness (cd/m²)	300+
Response time	5ms
Backlight type	LED
Backlight life time	≥50K hours
View angle	80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type	Project Capacitive Touch (10 points)
Touch options	5 wire resistive touch
Power Supply
External Power Supply	AC 100-240V
Working voltage	DC 12V
Enclosure
Material	Aluminum Alloy
Color	Silver, Black, white, color can be customized
VESA mounting	75x75mm/100x100mm
IP grade	Front panel IP65 waterproof
Operating Environment
Temperature Range	operating: -10 to 60°C, storage: -20 to 80°C
Relative humidity	5%~95% @ 40° C, non-condensing
Vibration	5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Other
Mounting way	wall mounting bracket (optional)
	desk stand holder (optional)
Accessories	Power adapter, power cord, user manual, warranty card
Warranty	1 year warranty
Certificate	CE, FCC, RoHS

Shinho is a China supplier of Wall Mounting Touch Monitor. We have a high-tech work shop on touch screen industrial pc. We have a complete quality management system. Choose us, you can be get most careful and thoughtful service!

---
