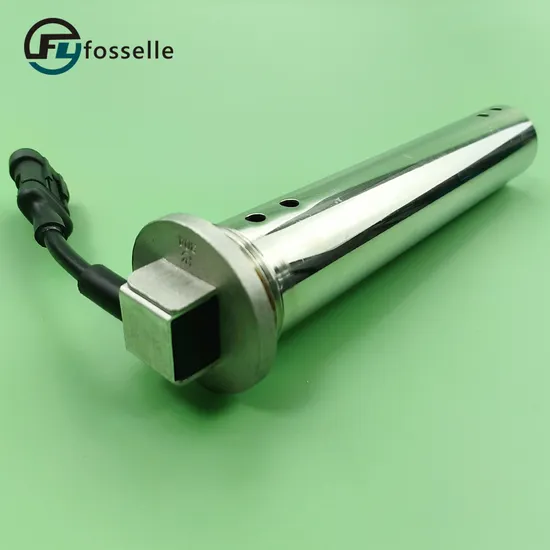

200mm Universal 0 - 190 Ohm Electrical Water Tank Level Sensor Fuel Level Sensor Float Switch Diesel Level Sensor

US$25.00

10-999 Pieces

US$20.00

1,000-9,999 Pieces

US$15.00

10,000+ Pieces

Basic Info.

Model NO.

FSL-SD3-200

Output Signal Type

Analog Type

Production Process

Integration

Feature

Corrosion Resistant

Material

Stainless Steel

IP Rating

IP67

Certification

Customized

Length

100-3000mm Customizable

Material Optional

PVDF/PP/SUS304/SUS316 0ptional

Cable

PVC or High Temperature Silicone

Output Signal

Resistance/Current/Voltage Optional

Transport Package

Carton

Specification

100mm-1500MM

Trademark

fosselle

Origin

China

HS Code

90269000

Production Capacity

20000

Packaging & Delivery

Package Size

20.00cm * 10.00cm * 10.00cm

Package Gross Weight

1.000kg

Product Description

Product Description As a diversified manufacturer ofliquidlevel sensors, our company has tens ofthousands ofsensors applied annuallyinfields such as generators, yachts, trucks,and construction machinery.The producthas a simple structure and adopts theprinciple of magnetic field control tomake and break the contacts ofthe reedtube.lthas the characteristics oflongservice life, antivibration, and explosion.proof.
WIDE APPLICATION: The fuel level sender is suitable for fuel, water, kerosene, chemical tanks and any kinds of liquids without impurities .

Level range	100~3000mm(OEM can be optional)
Resolution range	4.5mm/5mm/7mm/10mm/16mm/21mm/40mm
Medium	Gasoline, Diesel fuel, Water, Polluted water, Drinking water, Alcohol, Chemicals, etc
Power supply	10-32v
Rated power	125mW
Rated current for alarm switch	500mA
Operating temp. range	-40~+85ºC
Wire	PVC material(PA corrugated pipe cover is optional)
Probe material	Stainless steel 304 Stainless steel 316L
Floats material	Plastic(for oil medium) Stainless steel 304(For drinking water, chemicals, etc.) Stainless steel 316L(For sewage)
Mounting	BSP 1 1/2",BSP1 1/4" thread twist-in;NPT thread twist-in. flanges :382.6mm O-ring /433.5mm O-ring.(OEM)

Detailed Photos
