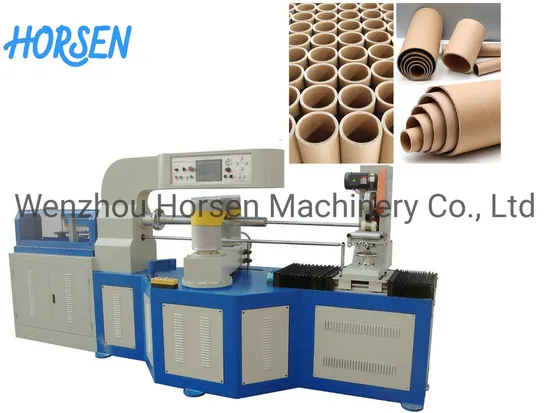

Parallel Paper Tube Forming Machine Parallel Paper Tube Winding Making Rolling Machine

Product Description

PAPER TUBE MAKING MACHINE
USE: Suitable for all kind of paper tube / paper can production. Such as package tin, tea caddy, food cans, wine cans, fireworks tube, calendar tube, fax paper core, etc.
FEATURE: Numerical control servo cutter device, high precision cutting; Automatically cut, automatically fall pipe, automatically change speed and revert; Computer PLC control, touch screen man-machine interface operation; Round knife cutting, incision more smooth, performance more stable; with polyurethane scraper and high carbon steel plastic knife, durable in use; Integration linkage device of integral paper reel stand and glue system, all electric regulation to feed paper; With multifunction waxing paper device and auto stop when paper cut off. Specification:

Technical Parameter
Number of roller	3-8 layer
Tube diameter	15-150 mm
Tube wall-thickness	0.5-5 mm
Core mould fixed way	Flank chuck
Winding head	2
Cutting way	Round knife
Gluing way	Single / double sides
Operator	1-2 person
Winding speed	3-20 m/min
Speed control	Transducer

Equip device
Paper shelf type	Integral reel stand
Auto fall tube shelf	Have
Glue shelf	Have
Belts	2
Core mould	2
Cut up-down control	Y lead screw+ stepper motor
Cut left-right control	Z lead screw+ servo motor

Mainframe size & Weight
Mainframe size	4200*1800*2000 mm	Weight	3000 KG
Area space		11000*8000 mm

1 Year Guarantee !
100% Good Quality !
24 Hours online Service!
if you have any inquiry, pls feel free to contact us. We will try our best to satisfy with you !

---
