| US$125,000.00-180,000.00 | 1 Piece (MOQ) |
| Cutting Unit The double KNIFE cutting unit has a synchronic rotary cutting knife like scissors on the material to make a smooth and accurate cutting for paper from 150gsm and up to 1000gsm.The knife roller is using the most powerful driver from UK CT. Precision rotary sheeter groove is processed by imported advance processing center with high accuracy and stability, High quality gear box ,using no clearance design gear. which guarantees the stability of the tool body during high-speed operation, completely solve the problem of scratches and light spots, after cutting the edge is neat and smooth, clean cut. | |
| Double Arm Unwind stand with web tension controls and pneumatic brake units. Adopt Italian RE control system and pneumatic components are adopted to guarantee the stable operation of the brake control system and the accuracy of every aerodynamic action. | |
| 8.Slitting knife APS-L series high-precision automatic positioning and slitting system is the latest technology today, which is suitable for high-precision slitting. The automatic positioning and slitting system realizes the function of fast automatic knife arrangement through the intelligent and accurate manipulator, which can greatly improve the production efficiency and the ability to change product varieties. | |

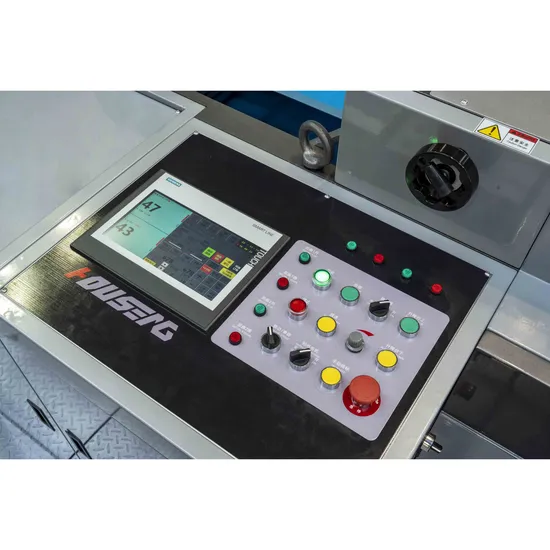

| Electric control part Adopt German imports of Siemens PLC and UK OF CT servo drive control system, make the operation more convenient, automation, cutting length, number and the total number of finished products, etc., can be directly in touch screen input. High efficiency and energy saving of high power CT servo drive rotary knife shaft, and cooperate with the energy storage tank, effectively reduce electricity consumption, improve the efficiency, reduce the production cost. | |
14.PLATFORM WEIGHING SCALE SYSTEM The platform weighing scale of the lifting platform can display the weight of the paper stack in real time, which is convenient for the operator to record at any time. The German technology of the platform weighing scale, with four horizontal and four vertical structure, to avoid damage to the scale and the accuracy of the measurement results due to the position movement of the weighing item during use. 15. Paper stack height detection function The laser rangefinder is used to realize the function of detecting the height of the paper stack. The laser sensor emits a laser pulse, which is reflected by the target and returns to the receiver, and the target distance is calculated by recording the time of flight of the laser pulse or the amplitude of the photoelectric signal. This function can measure the total height of the paper stack. | |
| The delivery section using automatic set paper equipment (Jogger and vibrating devices) Lift stacked set paper , the paper stack to a considerable height, which is automatically dropped. The stacker table has three sides shake finishing functions, and 1 unit Fixed plate which are vibrating and positioned laterally to each pallet, while in front of the pallet there is a jogger. 2 side plates are placed on a traversal support and can be positioned where necessary. the side of the motor to drive the paper on both sides by high-quality pneumatic by hand wheel to adjust the amplitude of the paper to improve the simplicity and safety of the operation. | |
| Reject Gate In the end of the first conveyor belt is placed a sheet rejecting device, which can be inserted by the operator in the starting phase for the first sheets. The start of rejecting device is manual by pushing the ON.OFF button to act the air cylinder of reject gate. | |
| The new Anti curvature device (2 set de-curl ) Effectively remove the curl of the roll to make the paper more flat, more conducive the paper roll tension stability. |
| Model | EXC-1500/1700/1900 |
| Type of cutting | Twin knife, Top blade and bottom blade rotary cutting |
| Paper weight range | 150-1000 GSM |
| Reel stand load capacity: | 2.5T (option 3T-4T) |
| Reel diameter | Max 1800mm (71") |
| Cutting Width | Max 1500/1700/1900mm (66.9") |
| Cut off length range | Min.400-Max.1650 mm |
| Cutting accuracy | ±0.15mm |
| Max. Speed of cutting | 500cuts/min |
| Max. Cutting speed | 480meter/min |
| Delivery height | 1700mm(incl.pallet) |
| Voltage | AC380V/220Vx50Hz 3ph or customized |
| Total power | 107kw |
| Output | The real output depends on the material, and the weight of the paper, and right operate process |
| ZHEJIANG HAOSHENG PRINTING MACHINERY CO.,LTD.HOUSENG is a leading company in china to produce sell sheet cutting machine /reel to sheet paper ,HOUSENG on extensive experience and fast develop speed in this field. Start from 2001, high performance models have evolved thanks to the commitment and know-how of our employees, intensive research and development, and the steady exchange with our customers on their needs and ideas . In the light of such policies as adapting to market demands ,basing on science and technology and seeking market share through quality ,HOUSENG aims to reduce cost and market competition ,provide better services for customer at home and abroad, and enable customers to obtain greater benefits. |
