US$3.00-5.00
|
100 Meters
(MOQ)
|
Basic Info.
Performance
Automotive Sealing Strip
Application
Quarry, Metallurgy, Chemicals, Agriculure
Supply Ability
100000 Meter Per Month
Transport Package
International Packing
Specification
ISO, CE OR OEM
Production Capacity
200000meter/Month
Product Description
Ep Anti-Tearing&Shock-Resistant Rubber Belt
Product Desription
1. Specification
| Belt width (mm) | Sidewall height (mm) | Cleat height (mm) | Effective belt width (mm) |
| 400 | 60 | | - |
| 80 | 70 |
| 100 | 90 |
| 120 | 100 |
| 500 | 60 | | 250 |
| 80 | 70 |
| 100 | 90 |
| 120 | 110 |
| 160 | 140 |
| 650 | 60 | | 250, 300, 350 |
| 80 | 70 |
| 100 | 90 |
| 120 | 110 |
| 160 | 140 |
| 200 | 180 |
| 800 | 60 | | 350, 410, 460 |
| 80 | 70 |
| 100 | 90 |
| 120 | 110 |
| 160 | 140 |
| 200 | 180 |
| 240 | 220 |
| 1000 | 60 | | 460, 550, 640, 690, |
| 80 | 70 |
| 100 | 90 |
| 120 | 110 |
| 160 | 140 |
| 200 | 180 |
| 240 | 220 |
| 300 | 270 |
| 1200 | 60 | | 460, 550, 640, 690 |
| 80 | 70 |
| 100 | 90 |
| 120 | 110 |
| 160 | 140 |
| 200 | 180 |
| 240 | 220 |
| 300 | 270 |
Rubber conveyor belt
1.Ply:1-10plies
2.Width:120-2200mm
3.Thickness: 6-40mm
4. Cover Tensile Strength: 9-25MPA
Specifiction/strength:
160N/mm-----3150N/mm
Width:
100mm---2200mm
Ep80 Ep100 Ep125 Ep200 Ep250 Ep300 Ep400 Ep500 Ep600
NN80 NN100 NN125 NN200 NN250 NN300 NN400 NN500 NN600
Advantage:
1. Natural rubber Thin belt body with high strength, light weight.
2. Anti-abrasive, impact resistant, corrosion resistant
3. Softy belt body, good flexibility, excellent trough.
4. Vulcanization molding
5. Long service life
Features
1.Excellent elasticity
2.Anti-impact
3.High-adhesion
4.Good flexibility
5.Trough ability
6.Better stability of size
7.Resistance to water
Application

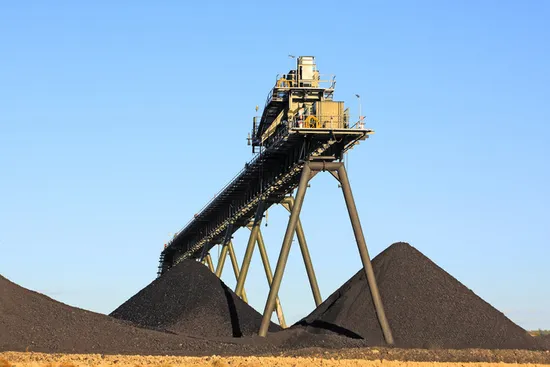

rubber conveyor belt is widely used in Harbour (port), Metallurgy, Mining, Electricity, Coal, Foundries, Construction, Food, Cement, Fertilizer, Copper, Pig Iron Ores, Sponge Iron Reserves etc.
rubber conveyor belt has over 10 key types according to the use classification:
Flat normal type Chevron Pattern type V-belt pattern type Nylon casing ply type Heat /cold resistant type Oil resistant type Flame resistant type ( self- extinguishing type) Chemical resistant type Anti shock type Anti-abrasive type conveyor belt are primarily used in the following industries: Chemical industry Coal-fired power stations Iron and steel industry Quarries Recycling industry Sand and gravel industry Metallurgy Agriculture Cargo terminal and port Architecture field Logistics and other fields
| Standards | Cover Rubber | Adhesion |
| Tensile Strength | Elongation at break | Abrasion | Cover to Ply | Cover to Ply |
| DIN 22102 | Mpa | % | mm3 | N/mm | N/mm |
| (<=1.5mm) | (>1.5mm) |
| DIN 22102-Z | 15 | 350 | 250 | 3.5 | 4.5 |
| DIN 22102-W | 18 | 400 | 90 | 3.5 | 4.5 |
| DIN 22102-Y | 20 | 400 | 150 | 3.5 | 4.5 |
| DIN 22102-X | 25 | 450 | 120 | 3.5 | 4.5 |
| Standards | Cover Rubber | Adhesion |
| Tensile StrengTD | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply |
| AS 1332 | Mpa | % | mm3 | N/mm | N/mm | N/mm |
| (<=1.9mm) | (>1.9mm) |
| AS 1332-N17 | 17 | 400 | 200 | 4 | 4.8 | 6 |
| AS 1332-M24 | 24 | 450 | 125 | 4 | 4.8 | 6 |
| Standards | Cover Rubber | Adhesion |
| Tensile StrengTD | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply |
| RMA | Mpa | % | mm3 | N/mm | N/mm | N/mm |
| (<=1.6mm) | (>1.6mm) |
| RMA-I | 17 | 400 | | 3 | 4.4 | 4 |
| RMA-II | 14 | 400 | | 3 | 4.4 | 4 |
| Standards | Cover Rubber | Adhesion |
| Tensile StrengTD | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply |
| SANS 1173 | Mpa | % | mm3 | N/mm | N/mm |
| A | 18 | 400 | 70 | 5 | 7 |
| C | 20 | 400 | 150 | 5 | 7 |
| M | 25 | 450 | 120 | 5 | 7 |
| N | 17 | 400 | 150 | 5 | 7 |
Application
>>
