Made in China Famous Brand Xuzhou 10-14 M3 Concrete Mixing Truck G14V G12V G10V for Sale

Product Description

Product Description

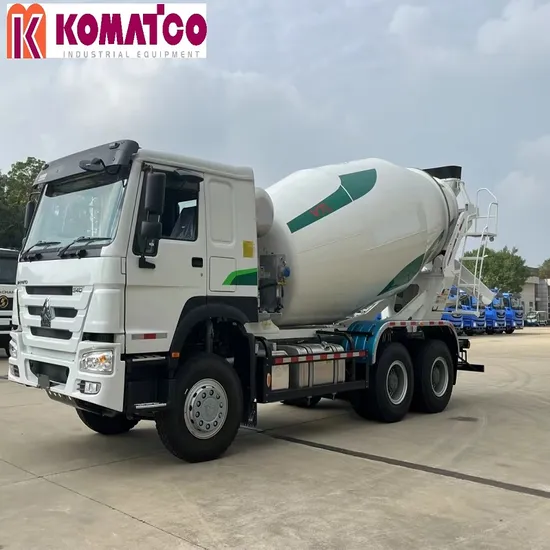

China Famous Brand 10-14 m³ Concrete Mixing Truck G14V G12V G10V
Concrete truck mixer is a specialized vehicle that has the function of transporting ready-mixed concrete from the mixing plant to the construction site safely, reliably and efficiently, and it is used in conjunction with a concrete delivery pump to achieve efficient mechanized construction of concrete.
1. Efficient mixing technology
* Large rise angle is designed at front cone to provide stronger mixing capacity and more uniform mixing, with a concrete slump change at all stages of ≤ 5%.
* Unique continuous trace design is used for transitional blade to ensure that mixing drum has no axial dead angle, with a lower residual rate of below 0.4%.
* SCHWING's large-bend arc-shaped blade design is used at rear cone to provide better concrete fluidity, with charging and discharging speed increased by 10%.
2. Tank technology of large capacity and low angle
* SCHWIN's blade design of variable height is used for mixing drum, together with optimized guide pipe, to provide stronger material sealing capacity and higher filling rate, thus improving the loading capacity of the tank by 6%.
* Low dip angle is designed, with the angle 5% lower than that of its counterparts and the stability improved by 18% under equivalent loading capacity. 3. Comprehensive improvement of key part's reliability
* Feed hopper and chute are made of multilayer high-strength wear-resistant liner plate, with the service life increased by 50%.
* The combined design of two bent arc-shaped rear beams and triangle stayed beam structure is used for rear support to provide super-strong bearing capacity, with fatigue life increased by 30%, sturdy and durable.
Product ParametersProduct Parameters

Item	Unit	Parameter
Agitating volume	m³	10
Curb weight	kg	13400
Max.total weight	kg	25000
Outline dimension	mm	9160×2520×3950
Chassis brand	-	Top Brand
Chassis model	-	NXG3250D5NCX
Driving type	-	6×4
Wheel base	mm	3800+1350
Engine	-	WP10.350E53
Max.power	kw	257
Emission standard	-	Euro V
Oil pump/Motor/Reducer brand	-	World famous brand
Water tank	L	450
