Magnetic Drilling Machine Jc3175 Jc3176 Jc3201 Jc3202

Product Description

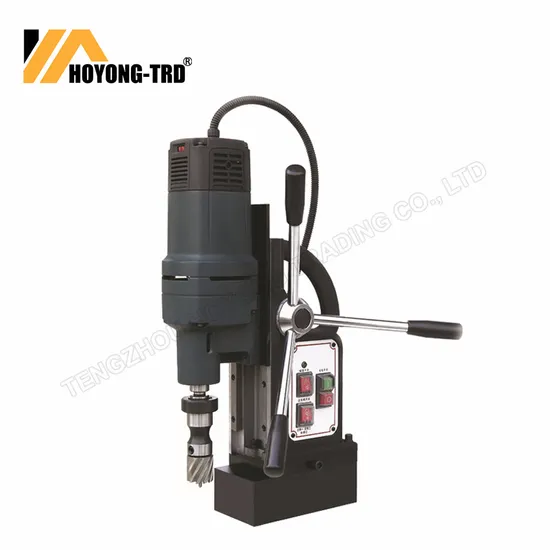

Magnetic Drill:
Magnetic drill also called Magnetic broach drill or Magnetic drill press. Its performance Principle is the Magnetic base adhesive onto the surface of
working metal.Then press the working handle downwards and drill through the heaviest beams and steel plating. The magnetic base adhesive power
controlled by electric coil that Electromagnetic.Using annular cutters, these drills can punch up to 1-1/2" diameter holes in steel up to 2" thick. They are
built with durability and heavy use in mind and feature powerful motors and strong magnetic bases.
Magnetic Drill Usage:
Magnetic drills is a new type of drilling tools, which construction and design very precision and uniform, very potable and universal drilling machine
for its light duty. Magnetic base made it very convenient on working Horizontally(water level), vertically, upwards or in high point. Magnetic drills is
an ideal machine in steel construction, industrial construction,engineering,equipment reparation, railways, bridges, ship building, crane, metal
working, boilers, machinery manufacturing, environmental protection, oil and gas pip line industries

MODEL	JC3175	JC3176 (The base is rotatable)
Voltage	220V	220V
Motor power (w)	1800	1800
Speed (r/min)	200-550	200-550
Magnetic adhesion(N)	>15000	>15000
Core drill(mm)	Φ12-55	Φ12-55
Twist drill (mm)	Φ32	Φ32
Max.Travel(mm)	190	190
Min.steel plate thickness(mm)	10	10
Spindle taper	Morse3#	Morse3#
Tapping	M22	M22
Weight (kg)	23	25
Rotation Angle	/	Left and right 45°
Horizontal Travel(mm)	/	20

---
