All Dielectric Self-Supporting Aerial Cable ADSS Optical Fiber Cable

Product Description

All Dielectric Self-supporting Aerial Cable ADSS Optical Fiber Cable

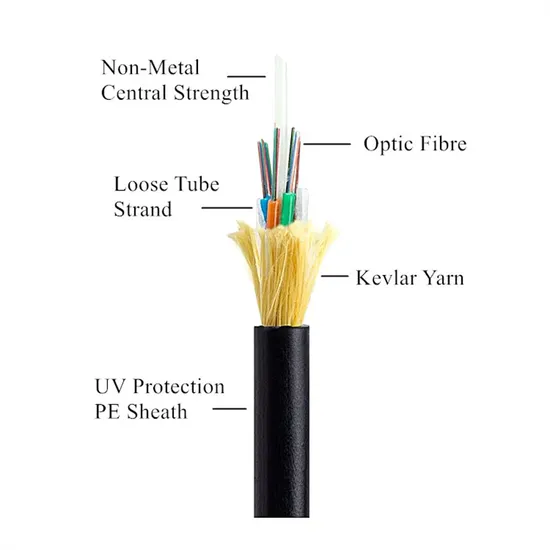

Product Description ADSS optical cable adopts loose tube layer stranding structure, with 250µm optical fiber sheathed in a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. The loose tube (and filling rope) are twisted around the non-metallic center reinforcement core (FRP) to form a compact cable core, and the gaps in the cable core are filled with water-blocking grease. A polyethylene (PE) inner sheath is extruded outside the cable core, and then aramid is twisted for reinforcement, and finally a polyethylene (PE) outer sheath or an electric tracking (AT) outer sheath is extruded.

Product Parameters

Cable type	ADSS
Optical fiber counts	2-288
Optical fiber color	Blue,Orange,Green,Brown,Slate,White,Red,Black,Yellow,Violet,Pink,Aqua
Fiber Types	Single-mode and Multimode
Cable Constructions	S-Z Stranded loose tube
Strength Member	FRP
Sheath Options	Double PE Sheath
Armor	Aramid yarn
Operating Temperature	-40ºC-70ºC
Tensile Strength	RTS:40000, MAT:16000
Crush Resistance	Short term 2200N/100mmLong term 1000N/100mm
Minimum bend radius	Dynamic 25DStatic 12.5D

Notes:
1.The above parameters are typical value;
2.The cable spec can be designed according to customer's requirement.
Detailed Photos
Company Profile
Packaging & Shipping
FAQ 1. who are we?
We are based in Zhejiang, China, start from 2019,sell to Central America(60.00%),South America(30.00%),Mid East(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Splicing Box,PLC Splitter,Fiber Distribution Box, Fiber Optic Cable
4. why should you buy from us not from other suppliers?
Ningbo FB Telecom Co.,Ltd is a high-tech enterprise, focused as a "Reliable Partner" to offer solution and suitable products to Operators and Partners.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

---
