C6136D Precision Turning Machine Manual Universal Metal Bench Lathe

Product Description

C6136D Precision Turning Machine Manual Universal Metal Bench Lathe

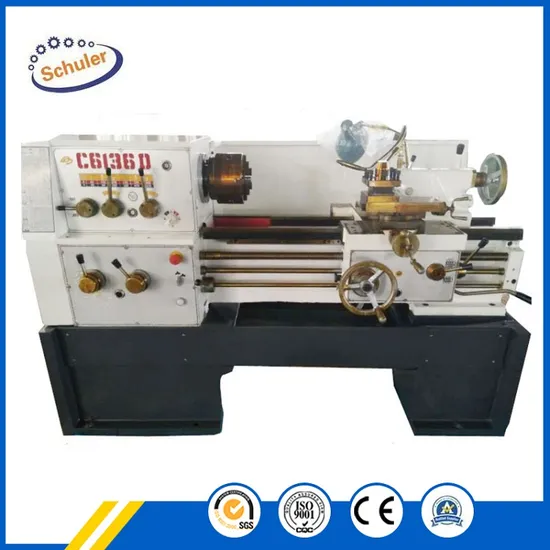

Product Picture:
Metal Bench Lathe Product Features:
1. Chrome Molybdenum headstock gears are hardened and ground
2. Universal gearbox allows inch, metric, diametral, and module pitch threads without changing gears
3. High quality ANSI Class 50 waer-resistant bed ways are hardened and ground
4. Removable Gap allows up to larger diameter workpiece
5. Attractive chrome-plated control levers, dials and knobs complete this impressive package
6 D1-6 spindle is precisely ground for accuracy and supported by high quality spindle bearings
7. Large easy to use foot brake
Metal Bench Lathe C6136 Random Attachments:
1·Lighting
2·cool down
3·Three-jaw chuck + tray
4·Reducing sleeve
5·Oil gun
6·Wrench
7·Baffle plate
Metal Bench Lathe C6136 Optional Accessories:
1·Drawing
2· four-claw chuck + tray
3·Flower plate
4. Center frame
5·with knife holder
6. Live top
7. Spring screw guard
8. Digital display
9. Taper model
Metal Bench Lathe C6136 Technical Parameters:

Specifications	C6136		C6136D
Center height	180mm
Max.Swing over bed	360mm
Max.Swing over carriage	200mm
Max.Swing in gap	540mm
Effective gap length	200mm
Max.Length of work-piece	750mm or1000mm
Width of bed	310mm
Spindle taper	Mohs 6 MT6
Thru-hole of spindle	52mm
Range of spindle speeds	30-1600r/min(12steps)
Cross toolpost travel	240mm
Compound toolpost travel	140mm
Tail stock center travel	90mm
Tail stock sleeve taper	MT4
Spindle motor	3/4kw
Range of metric threads	0.15-20mm(30 Species)
Range of inch threads	80-1.75 teeth / inch (35 species)
Longitudinal feed	0.039-1.1mm
Lateral feed	0.018-0.5mm
Tail-stock spindle maximum stroke	100mm
Tail-stock spindle diameter	40mm
Overall dimensions for 750mm	2000×1130×1540
Overall dimensions for 1000mm	2250×1130×1540
Net weight of 750mm	1400kg	1500kg		1700kg
Net weight of 1000mm	1500kg	1600kgh		1800kg

Brand Image:
As a professional manufacturer of lathe machines, we want our customers to know of our commitment to providing the latest products to all customers.
Metal Bench Lathe C6136 Production workshop:
Metal Bench Lathe C6136 Site Map:
Metal Bench Lathe C6136 Package Delivery:
FAQ
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.
2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
Give reasonable offers with the best quality.
3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us
5. What is the MOQ?
---->We usually provide 1 set for customers to test.
6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
8.Agents Wanted:
---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
