Basic Info.
Application
Machinery & Hardware, Construction
Automation
Semi-automatic
Cutting Ability
Medium Speed
Transport Package
Carton with Steel Frame
Specification
L1580*W500*H900 mm
Production Capacity
1000PC/Month
Product Description
PRODUCT DESCRIPTION

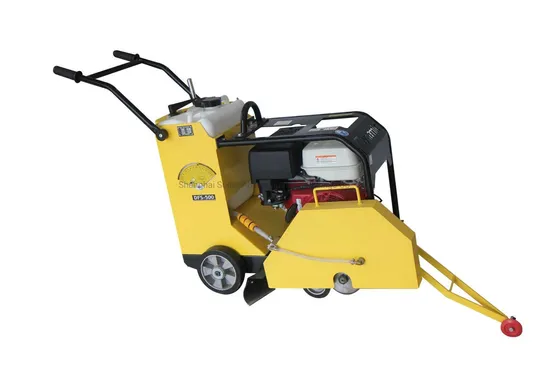

Concrete cutting petrol powered road cutter
It is widely used for cutting concrete floor and asphalt surface.
1. Concrete floor, asphalt pavement, and plaza square cutting
2. Concrete floor or asphalt pavement repair
3. Concrete grooving
TECHNICAL DATA
| Model | SADFS-400 | SADFS-500 |
| Weight kg | 122 | 135 |
| Dimension mm ( L*W*H ) | 1580*500*900 | 1260*540*1035 |
| Cutting width mm | 5-8 |
| Max Cutting depth mm | 120 | 180 |
| Disk size mm | 300-400 | 300-500 |
| Install Aperture m/min | 26-50 |
| Engine type | Air-cooled, 4-cycle, Gasoline |
| Honda GX270 | Honda GX390 |
| Max. output kw (hp) | 7.0 (9.0) | 9.6 (13) |
| Max. speed rpm | 3600 |
| Fuel Tank liter | 6.1 | 6.5/7.0 |
Feature: A variety of concrete, asphalt pavement, plaza stretching cutting Concrete, asphalt pavement repairs, cutting All kinds of concrete cutting, grooving Features and advantages Configuration of the tank connected with quick connectors improves the working efficiency The unique design of safety cover makes it easier to exchange the cutting saw. Forward guide bar to ensure the accuracy of the cutting direction With the unique spraying system designed with water-tank, cooling water is sprayed to the blades so as to lubricate and cool the blades, enhances the service life of the blades
>>
