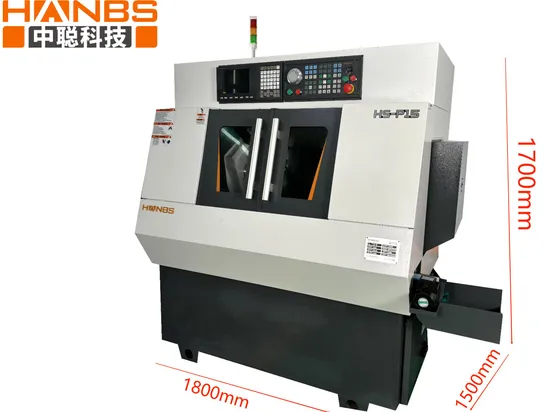

Hanbs High Standards Swiss Type CNC Lathe Factory with High Ridigity and Precision HS-P15

Product Description

HANBS High Stands for Swiss Type CNC Lathe Factory with High Ridigity HS-P15
Some pictures about HANBS
Some pictures about delivery
Foreign customers visit the company
Exhibition photos:
Technical parameter

	Project
Processing references	Maximum machining diameter	15mm(spindle)12.7mm(back spindle)
	Maximum machining length 2.5D	35mm
	aximum axial bore diameter	Φ7mm
	Maximum axial work wire size	M6
	Maximum spindle speed(short time)	10000rpm
	Maximum back spindle (short time)	12000rpm
	Maximum workpiece removal length	35mm
Maximum stroke	X1 axis	285mm
	Z1 axis	170mm
	X2 axis	285mm
	Z2 axis	170mm
Tool	Blade size	310mm
	Maximum number of tool installations	8
	Tool (turning tool)	12X12
	Sleeve	Φ20
	Height from blade holder to spindle center	45mm
collet	Spindle collet	18.1x21(M18X1.2)76
	Back spindle collet	HA12
Feeding speed	X1/X2 axis feed velocity	30m/min
	Z1/Z2 axis feed velocity	15m/min
Electric motor	Spindle drive power	2.5/3.7KW
	X1,X2,Z1,Z2 power	0.75KW
	For cutting fluid	0.4KW
Others	Spindle center height	1010mm
	Barometric flow	0.7mpa 0.5m³/min
	Main circuit breaker capacity	40A
	Input power	5.0KW
	Weight	2400Kg
	Overall dimensions	1850X1450X1600mm

F&Q
Q1.Are you manufacturer or trading company?
A. We are professional machine tool manufacturer, we set export sales center & showroom in Dongguan city.Welcome to visit.
Q2. How can I place order and get more details about the machine ?
A: You can contact us by email or on line and tell me which details you want to know I will send you the processing vedio and photos.

Q3. About the price can you give the favourable or best price?
A. We have different series machine,and we will recomand you the suitable machine according to your products.Our aims is to become long-term cooperation and friends so we will give you the favourable price for you.
Q4.Can you provide some certificate?
A. According to different country,we can provide different certificate which you need.
Q5.What kind of products your machine can processing?
A.Maxi processing diameter is 46 mm.Mini processing daimeter is 3mm.And you can send me the drawings about your products our engineer will do the assessment.
Q6.How will the machine be transported?
A.We transport machine by sea and the port is Shenzhen.
Q7.What is the features about the machine?
A.High precision and rigidity,improve customers' production and help customer to solve the problems.
Q8.How will the machines be packed?
A.We will fix the machine axial and pack it in wooden cases,make sure that the machine not be damaged.

---
