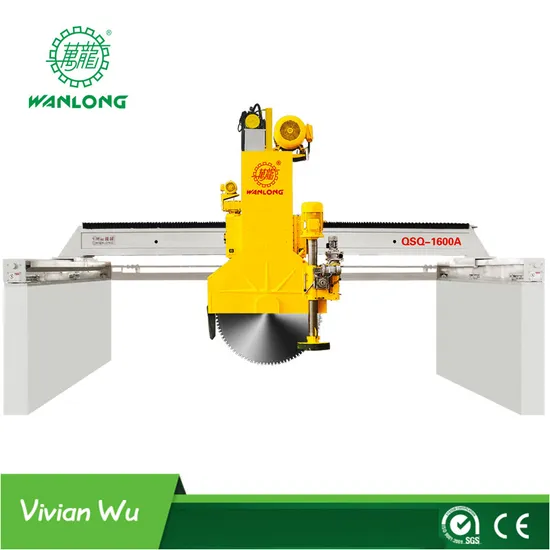

Qsq-1600A Wanlong Marble Block Cutter Multi Granite Quarry Cutting Machine for Granite

Product Description

QZQ-1200/900 Bridge Cutting Machin e

Model	QSQ-1200A	QSQ-1600A
Vertical stroke of blade (mm)	Φ1200	Φ1600
Max. cutting dimension (LxW)	3800*2100mm	3400*2100mm
Max.vertical Stroke	1350mm	1350mm
Main motor power (kw)	55kw	55kw
Crossbeam length	7260mm	7260mm
Power requirement	3 Phs 380V 50Hz, other is available	3 Phs 380V 50Hz, other is available
Water consumption (cbm/h)	10	10
Diameter of horizontal blade	D400-D600	D400-D600
Main motor power for horizontal blade (kw)	11kw	11kw
Vertical stroke of horizontal cutting column(mm)	850	850
Overall dimension (mm)	7400*3800*6100	7400*3800*6100
Approx. Weight (kg)	9000	9500

Product Introduction & Parameter

Professional Team
23 years of experience in diamond tools industry;
900 experienced employees;
2100 clients from 108 countries and regions;
200,000 pieces segments of daily production output.
Wanlong is now one of the biggest manufacturers of diamond tools, supplying products for stone cutting, polishing, grinding and drilling.
Following products are supplied:
1. Diamond segments and diamond saw blade, ranging from 200mm to 3500mm.
2. Dry cutting & turbo saw blade.
3. Diamond wire and beads for granite & marble.
4. Polishing abrasive.
5. PDC Cutters for Oil & Gas Drill Bits and Chain Saw machine.
6. Bridge Cutting Machine & Auto Polishing Machine, etc.
1).QSQ-2200/2500 Bridge Multiblade Block Cutter 2). QZQ-900/1200 Bridge Cutting Machine
3).PLC-400/600 Laser Bridge Cutting Machine
4).MS-2600/3000 Polishing Machine
5).SY-S80 Hydraulic Pressing Machine, etc.
If any product meet your demand, please contact us for further information.
If any request, just feel free to contact us, we will keep providing quality products and excellent sevice for you.

---
