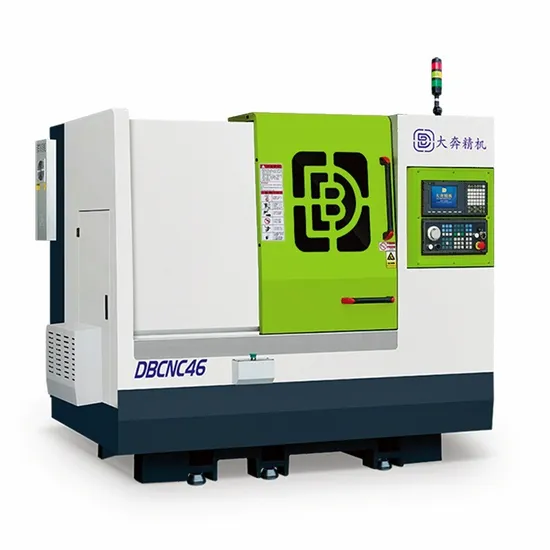

dB-6146 CNC Machine for Various Applications

Product Description

Model characteristics
1.T-shaped tool changer board reduces tool changing time, enhancing production efficiency and versatility.
2.45-degree slant bed design facilitates easy loading and unloading of workpieces and ensures smooth chip removal.
3.Prominent features include high rigidity, quick tool changes, cost-effectiveness in processing, and an oversized chip removal outlet.
4.The extra-large 900mm X-axis travel and 330mm Z-axis travel facilitate tool arrangement and allow for turret and powered head installations.
5.Upgraded simple lathe-mill compound options provide multiple selections, including the option to install a flying cutter disc, enabling 4-axis coordinated movement.
6.The integrated cast-formed bed ensures machine stability and precision after assembly, housing an independent spindle unit.
7.Options for installation include: side/end power heads, side 2/3/4 with Y-axis power heads, 2+2/3+3/4+4 with Y-axis power heads.
Standard configuration
- New generation system
- Japanese NSK bearings
- Japanese THK lead screws
- Integral cast iron bed
- German Rexroth linear guides
- Taiwan Jiancheng / Taiwan Pusen spindle
For more information, contact Dongguan Daben Intelligent Equipment Co., Ltd.
Technical parameters

Model	DBCNC46
Item	Describe	unit	Parameter
Spindle	Spindle nose end	/	A2-5
	Spindle bore	mm	56
	Bar diameter	mm	46
	Chuck/collet size	/	6 "/46 type collet
Machine range	Maximum slewing diameter	mm	400
	Maximum turning diameter	mm	350
	Maximum processing length	mm	280
	Tool holder plate and spindle center height	mm	63
Mechanical capacity	Maximum spindle speed	rpm	6000
	Maximum X/Z speed	m/min	30/25
Mechanical precision	Spindle indexing repeatability	/	±0.005°
	Spindle indexing positioning accuracy	/	±0.002°
	X/Z axis repeatability	mm	0.002mm
	X/Z axis positioning accuracy	mm	0.003mm
Axial travel	X-axis travel	mm	900
	Z-axis travel	mm	330
Turret	Turret model	/	80 center height
	Number of tool positions	T	8T/10T/12T
Motor power	Spindle servo motor	KW(HP)	7.5
	X/Z axial servo motor	KW(HP)	1.7
	Servo motors for milling axes	KW(HP)	0.45
Other than	Height of spindle from ground center	mm	1000
	Total machine power	KW	About 9.0
	Machine external dimensions (L*W*H)	mm	About 1850*1450*1700
	Overall weight	KG	About 2500

Detailed Photos
Explore our remarkable DB-6146 Type Slant Bed Turret CNC Lathe for precision in various applications. Ideal for metal processing, this CNC machine ensures accuracy and efficiency.
Company Profile
Part of the manufacturing workshop
Application field
Part of the shipment
Exhibition images
Customer visit pictures

common problem
1:How to choose the most suitable machine?
A:Please tell us your specifications, and we can help you select the best model, or you can choose a specific model. You can also send us the product drawings, and we will select the most suitable machine for you.
2:How can I obtain a quotation?
A:Please tell us the model of machine you need, including the quantity and any other requirements.
3:Where is your factory located?
A:Our factory is located in Dongguan, Guangdong Province China. The postal code is 523000. We warmly welcome you to visit.
4:What are your terms of trade?
A:FOB
5:What are the payment terms?
A:T/T, 30% down payment upon order placement, and the remaining 70% balance payment before shipment.
6:How can I trust your company?
A:The quality of our products and our reputation are the greatest assets of our company.

---
