Lamination Melamine Plywood 30 Layers Press Machine Board Pannels and MDF

Product Description

Hot press specializes in plywood production. Plywood is an ideal product with wide applications.
It's crucial in furniture manufacturing, providing a basis for various pieces. For office supplies, it ensures durability. In audio, it enhances sound quality in combination speakers.
In packaging, it protects goods during transit. In exhibitions, its versatility enables creative displays. Plywood's adaptability makes it essential across these industries.
1.CNC planer precision process frame.Polishing hot platen, thermal oildouble inlet and double outlet.
2. Adopt Taiwan Delta automatic PLC system, the whole machine is automaticoperation, easy to operate. Electrical components are Siemens Brand.

Product Parameters

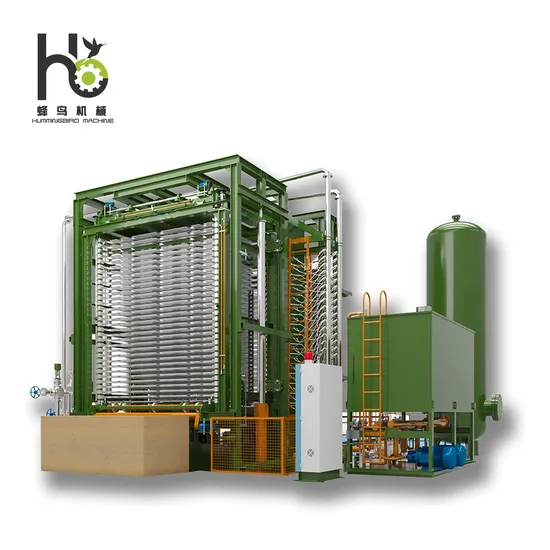

Hot press of fully automatic 30 layer
Note: Customers can customize the number of layers according to their needs

Nominal pressure	8000 KN	Platen size	L:2700*W:1370*H:42mm
Feeding mode	Double in and out	Product size(mm)	1220*2440mm1pcs
Open-seat	70mm	Story number	30 layers
Diameter of plunger case(mm)	Ø320*2250mm*4pcs(Main)	Working stroke(mm)	2100mm
Working pressure(kg/cm2)	21kg/cm2	Closing speed(m/min)	15m/min
Over all size(mm)	L:3590*W:1370*H:6650mm	Nitrogen tank size	Ø1440*6620mm(9m*)1pcs
Weight of nitrogen tank	4900kg	Hydraulic station size	L:3200*W:1500*H:2800mm
Tank volume	7m	Total weight of hydraulic station	5800kg
Low pressure pump motor	22KW*2pcs	High-pressure pump motor	5.6KW*1pcs
Elevator motor	2.2KW*1pcs	Whole machine total power(kw)	51.8KW
Height of workshop	6500mm	Depth of foundation pit	4300mm
Total weight	75T

Loader of fully automatic 30 layer

Product dimensions(mm)	1220*2440mm1pcs	Open-seat	70mm
Story number	30 layers	Ram& Cylinder(Frames Up)	Ø160*3550mm*2pcs
Working stroke(mm)	3400mm	Lifting speed	15m/min
Overall dimensions(mm)	L:4220*W:2020*H:9000mm	Drive into the board	Double hydraulic motor
Total weight(T)	9.8T

Unloader of fully automatic 30 layer

Product dimensions(mm)	1220*2440mm1pcs	Open-seat	70mm
Story number	30 layers	Ram& Cylinder(Frames Up)	Ø140*4000mm*2pcs
Working stroke(mm)	3850mm	Lifting speed	15m/min
Overall dimensions(mm)	L:4220*W:1015*H:10020mm	Drive into the board	Hydraulic motor
Total weight(T)	7.4T

Applied Widely
Plywood is the ideal product widely used in all kinds of furniture, office supplies, combination speaker, packaging, exhibition and other industries.In the packaging industry, plywood offers excellent protection. Its durability can safeguard delicate items during transit, whether by land, sea, or air. For exhibition booths, plywood serves as a versatile building material. It can be easily cut, shaped, and assembled into various designs, enabling exhibitors to create eye-catching displays.
Detail Accessories
Features
