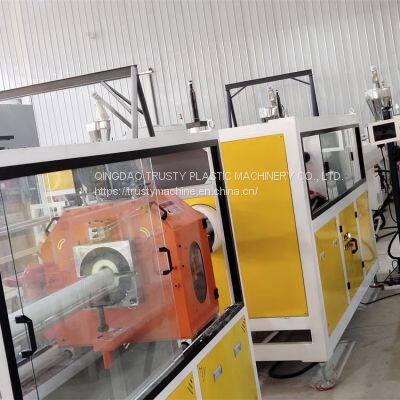

PVC pipe water pipe production extrusion line

Product Details

Product Details

Product Description

Product Description
PE/HDPE PIPE MAKING MACHINE
PP/PPR/PERT PIPE PRODUCTION LINE
PVC SINGLE DOUBLE FOUR PIPE EXTRUSION LINE
1.PVC pipe extrusion line
Machine List
No.Equipment list for PVC pipe manufacturing plantQuantity
1Mixing machine1 set
2Auto feeder1set
3Conical double screw extruder1 set
4Die head and sizing moldcustomized
51st cooling tank1 set
62nd cooling tank1 set
7haul off device1 set
8auto cutting machine1 set
9Laser printer or ink jet printer1 set
10PVC pipe stacker1 set
11Crushing machine1 set
12PVC powder milling machine1 set
13Air compressor1 set
14water chiller1 set

Technical Parameter
Diameter range(mm)Extruder ModelMain motor power KWMax. Capacity(KG/H)Max. Haul off speed(m/min.)
16-40 DualSJSZ-51/10518.5 AC15010
20-63 DualSJSZ-65/13237 AC25015
20-63SJSZ-51/10518.5 AC12015
50-160SJSZ-65/13237 AC2508
63-200SJSZ-65/13237 AC2503.5
110-315SJSZ-80/15655 AC4503
315-630SJSZ-92/188110 AC8001.2

Machine Photos
2.PE pipe extrusion line
Machine List
No.ItemQty
1Automatic Feeder and Drier1
2Single Screw Extruder1
3Color Line Co-Extruder1
4Mould1
4.1Die Core
4.2Die Lips
5Vacuum Calibration tank1
5.1Copper Calibration Sleeve
6Spray Water tank1
7Three cater pillar Haul-off unit1
8No dust Cutting machine1
9Pipe stacker1
10Laser printer1

Technical Parameter
ModelExtruderPipe diameter(mm)Motor Power(kw)Output(kg/h)Length to diameter ratio(L/D)
SJ-63SJ6520-633780-15033:1
SJ-110SJ6520-11055100-20033:1
SJ-160SJ7550-16075150-25033:1
SJ-250SJ6050-25090400-50038:1
SJ-315SJ90110-315160280-40033:1
SJ-450SJ75200-450160600-80038:1
SJ-630SJ90315-630250800-100038:1
SJ-800SJ150450-800360600-130033:1
SJ-1000SJ150630-1000380800-150033:1
SJ-1200SJ120/SJ90800-1200450900-180033:1

Machine Photos
FAQ
1.Are you a factory or a trading company?
Factory
2.Can I get free samples?
Send free samples. But you need to pay the cost of Express which can be reduced in the order of machine in the future.
3.How do I get response quickly?
If you send email, whatsApp, WeChat to contact us, we promise to reply to you within 8 hours! WhatsApp is the best and 24 hours online:)
