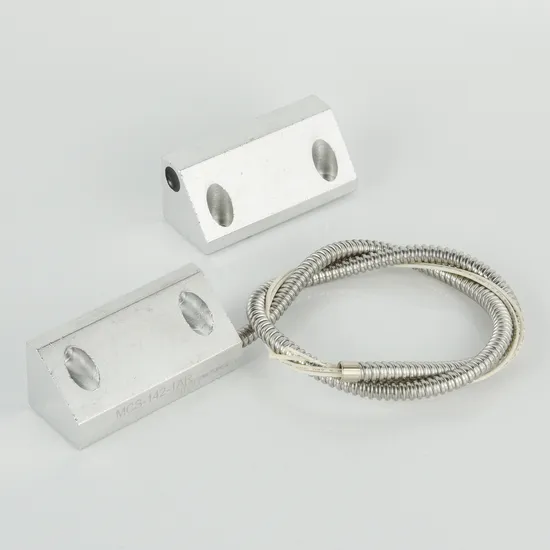

Rugged Door Contact Sensors

Product Description

Specification:

Part Number	Loop Type	Reed Form	Closed Gap [Inch(mm)]	Depature Gap [Inch(mm)]	Maximum Initial Contact Resistance (Ohm)	Maximum Contact Rating (W)	Maximum Switching Voltage (VDC/VAC)	Maximum Switching Current (A)
BSD-3015	Closed	N/O	2.95 (75)	3.18 (80)	0.150	7.5	100	0.4
BSD-3015WG	Closed	N/O	3 1/2 (90)	3.75 (95)	0.150	7.5	100	0.4
BSD-3015A	Open	N/C	2 1/2 (65)		0.150	3	30	0.2
BSD-3015C	Closed & Open	SPDT	2 1/2 (65)		0.150	3	30	0.2
BSD-3015D	DPDT	2-SPDT	2 1/2 (65)		0.150	3	30	0.2

Rugged Door Contact Sensors
Dimension (mm):
Product Features:
* Small size
* Heavy duty Aluminum housing
* Extude aluminum casings for harsh environments
* Wire: #22AWG with 22" armored cable
* Longer cable available on request
* Switches or magnets are available separately
* Jacket cable available: BSD3015-J
* Resistor, Diode and Supervisory Loop available on request
