Round Column Vertical Drilling Machine (Z5040, Z5035)

US$1,800.00-3,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

Z5040, Z5035

Structure

Vertical Drilling Machine

Layout

Vertical

Controlling Mode

Vertical

Number of Shaft

Hole Diameter

50-100mm

Automatic Grade

Manual

Precision

High Precision

Certification

GS, CE, ISO 9001

Condition

New

Gear Type Vertical

Drilling 35mm, 40mm

Model

Z5040

Size

2270 690 1100

Color

White and Blue

Weight

615

Spindle Taper

Mt4 Vertical Drilling

Spindle Feeding

0.01 Auto-Feeding

Table Size

560X560mm

Worktable Rotary

360 Degree

Motor Power

2.2/2.8kw

Transport Package

WOOD CASE

Specification

CE ISO9001

Trademark

UNI-TECH

Origin

CHINA

HS Code

84592900

Production Capacity

200SETS/MONTH

Product Description

Product Description

round column Vertical Drilling Machine (Z5040, Z5035)
* New-desigened, pleasing appearance, compact construction, wide speed change range, easy to operate.
* Easy operation with its unique workable, and both motor-drive and manual-operated lifting device.
* The working table can be rotated 180° And can be tited± 45° Also, it is reliable and easy job can be done.
* Equipped with coolant system and tapping mechanism.
* Equipped with shortcut and overload protection, its electricasystem with powerful spindlemotor, it designed according to IEC standard.
* Characteristic protection device is safe and reliable.
* Ideal choice for single pice, small batch and mass production for drilling, counter boring, reaming, tapping, spot facing, etc.

Model CODE NO.	Z5040	Z5035
	50013	50014
Max.drilling capacity	40
Threading in steel & last iron	M20&M24
Spindle travel	180mm
Spindle taper	MT4
Spindle power feed	2steps/0.1-0.2mm/rev
Spindle speed	50-1450rpm
Width of T-slot	18mm
Max.distance from spindle axis to surface of column	350mm
Max.distance from spindle end to surface of table	770mm
Max.distance from spindle end to surface of base	1210
Table size	560×560

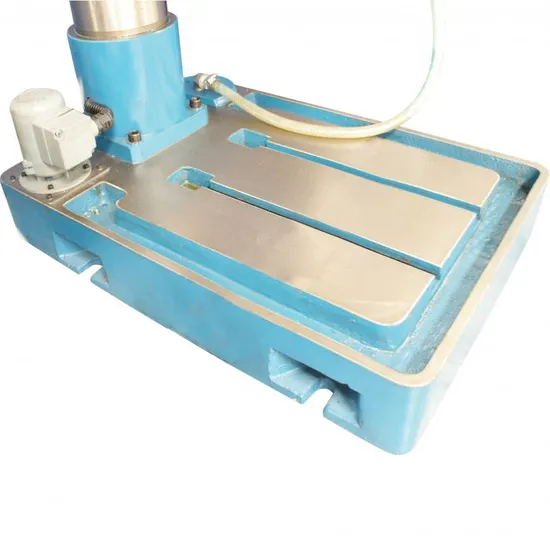

Base size	730×500
Motor power	0.85/1.5kw
NW/GW	465kg /615kg
Packing size ( L x W x H)	2270×690×1100mm
