Product Details
Product Description
Product Description

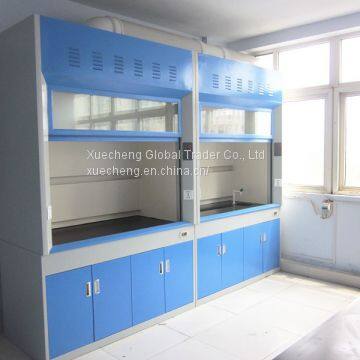

Standard Type Galvanized Steel Laboratory Fume Hood
1500x850x2350mm
Fume hood is one kind of lab furniture, essential for laboratories, which plays the role of air exhaust and gas exchange.
The structure of fume hood is upper-under type, there is exhaust hole at the top, which can be installed with vent fan.
The upper hood/cabinet has guide panel, circuit control touch screen,power sockets, etc
visual window uses tempered glass, can be moved up-down. operated by people.
The under cabinet use wall bench type, the upper part is worktop, the lower is cabinet body, the worktop can be installed with water sink&tap.
Features
Upper Hood: with 1.0-1.2mm thick cold rolled /galvanized steel sheet bended and pressed, the surface is treated by unoil, pickling, phosphating to prevent rust, then electrostatic spraying epoxy protective coating as surface treatment of anti-acid/alkali/corrosion, the adhesive force of its spraying epoxy protective coating is good after the test of drop impact;
- Visual window: ≥5mm thick anti-explosion tempered glass, slides smoothly, can stop at any position of the track; main window glass can slide around freely, is convenient for user to operate.
- Lining panel and Guide panel: use 5mm thick compact chemical base panel, with excellent anti-corrision effect, the guide panel is 3-level exhuast guide design inside, can remove the exhaust corners and contribute to discharge gases with different density; the control panel is set on side of outer column, is convenient for observation and operation.
- Electric System
1. Controlller: LCD screen intelligent display panel set on side of outer column, is convenient for observation and operation.
2. Socket: use safe socket with protecting cover of dustproof, spray proof. Outer size is 60*60mm, 10A/16A /220V multifunction socket, suitable for all kinds of lab equipment.
3. Lighting: use integrative led lamp, hidden in the top panel, will not be in touch with the gases in the fume hood, is easy to be replaced, the luminance is enough for experiment purpose.
Worktop: 12.7mm thick solid core physiochemical board (epoxy resin board is optional), acid and alkali resistant, corrosion resistance.
Base Cabinet: the underneath part is overall assembly structure, use 1.01.2mm thick cold rolled / galvanized steel sheet bended, with surface sprayed by epoxy resin powder.
- Hinge: use 90⁰ damping steel hinges, no noise, no spring back, high strength and can not easily be broken.
- Handle: dark aluminium alloy handles or bent integrative handles(bright type stainless handle is available).
Technical Specifictaions
Name
| Size
| Model
|
Standard Fume Hood
| 1500*850*2350mm
| XC-FH1500
|
NOTE:
1 We can design and manufacture non-standard size as per users' requirements.
2. The price excludes vent blower, vent pipe& elbow, and water sink&tap are optional.
Accessories
More Models for option
Packaging&Shipping
Because the GW and dimension is large, so the lab benches, fume hoods or lab cabinets can be only shipped by Sea;
They would be packed in cartons (FCL) or plywood cases(LCL) in assembled or disassembled state.
Application
biological pharmacy, biological analysis, plant culture, environmental test, electronic instruments and scientific research, etc.
