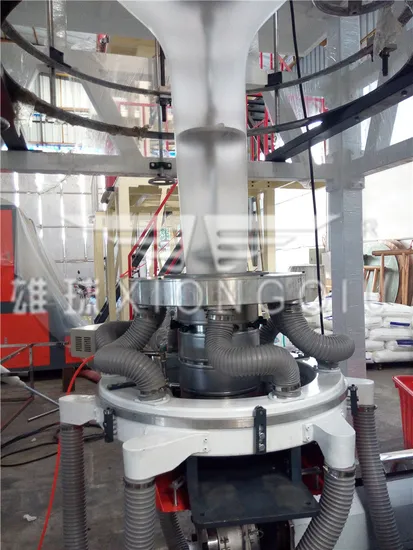

1800mm Po Film Blowing Machine with Rotary Die Head

Product Description

It's used to blow various plastic film of low density olyethylene(LDPE), high density polyethylene(HDPE) and linear low density polyethylene(LLDPE), etc.. Widely used for packing food stuff, garment and daily textile, industrial product and agricultural film.

Model	FM-800	FM-1100	FM-1300	FM-1700	FM-1900	FM-2200
suitable material	LDPE / LLDPE / HDPE
thickness	0.02--0.20mm
film width(mm)	700	400--1000	400--1200	1600	1800	2100
max output	45kgs/hr	55kgs/hr	70kgs/hr	105kgs/hr	150kgs/hr	200kgs/hr

Extruder

screw diameter	Φ45mm	Φ55mm	Φ65mm	Φ75mm	Φ85mm	Φ95mm
L/D ratio	30:1
temp. controller	5 zone	5 zone	5 zone	6 zone	6 zone	8 zone
barrel cooling	120w*2	120w*2	120w*2	250w*3	250w*3	250w*3
driving motor	11kw	15kw	22kw	30kw	37kw	45kw

Die head

die diameter	Φ150mm	Φ200mm	Φ250mm	Φ350mm	Φ450mm	Φ500mm
air ring diameter	Φ250mm	Φ300mm	Φ350mm	Φ450mm	Φ550mm	Φ600mm
die structure	Spiral mandrel die chrome plated surface 40Cr
cooling fan	950w	1.5kw	2.2kw	3kw	4kw	4kw

Draging part

take up width	800mm	1100mm	1300mm	1700mm	1900mm	2200mm
effective width	750mm	1000mm	1200mm	1600mm	1800mm	2100mm
take up motor	1.5kw	1.5kw	1.5kw	2.2kw	2.2kw	3.7kw

Winder

winder width	800mm	1100mm	1300mm	1700mm	1900mm	2200mm
effective width	700mm	1000mm	1200mm	1600mm	1800mm	2100mm
winder motor	30kg	30kg	50kg	50kg	80kg	100kg
optional equipment	auto-loader, film surface treater, fast change net, air compressor, double center rewinder/auto-rewinder, flat cage roll rewinder, rotary die head, double wind air ring

pictures for reference:

---
