Professional Industrial Grinding Machine M618A Senmo

Product Description

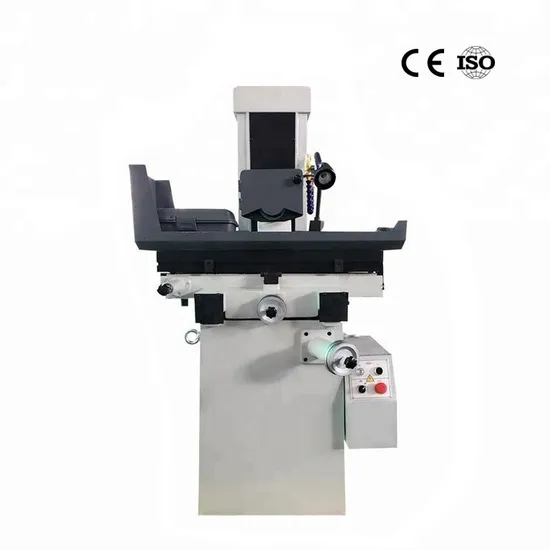

Manual Surface Grinding Machine

Specifications		M618A	M820	M1022
Table Size (LxW)		460x180mm	480x200mm	540x250
Max movement of working table (LxW)		500x190mm	530x220mm	560x260
T-Slot number×width		1x14mm	1x14mm	1x14
Max distance from spindle center to table surface		335mm	440mm	420mm
Wheel size (Outer diameter×Width×Inner diameter)		180x13x31.75mm	200x20x31.75mm	200x20x31.75mm
Wheel speed	50HZ	2850r/min	2850r/min	2850r/min
	60HZ	3440r/min	3440r/min	3360r/min
Vertical feed on handwheel	Per revolution	1.25mm	2.5mm	4.0mm
	Per graduation	0.01mm	0.02mm	0.02mm
Cross feed on handwheel	Per revolution	2.5mm	1.25mm	1.25mm
	Per graduation	0.02mm	0.01mm	0.01mm
Spindle motor		1.1KW	1.1KW	1.5KW
Coolant pump motor		40W	40W	40W
The parallelism of working surface to base level		300:0.005mm	300:0.005mm	300:0.005mm
Surface roughness		Ra0.32μm	Ra0.32μm	Ra0.32μm
N.W./G.W.		650/750kg	750/850kg	850/950kg
Packing size		100x115x176cm	114x125x194cm	120x140x194cm

Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

---
