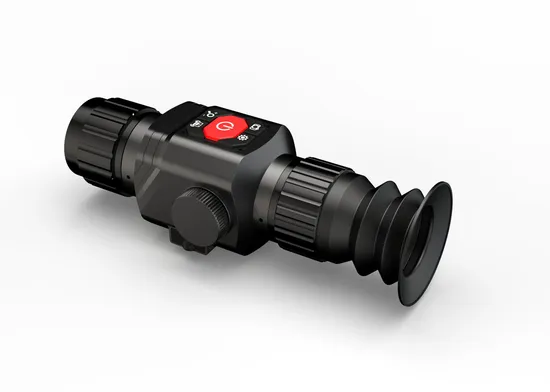

Handheld Uncooled Thermal Imaging Scope

Product Description

Product Description Key Features
♦ 384x288 uncooled microbolometer infrared focal plane arrays
♦ High sensitivity, 25Hz
♦ Auto adjust brightness and contrast, manual nonuniformity correction
♦ Low power consumption, quick start-up, stable performance, image with high uniformity
♦ Dynamic Detail Enhancer (DDE) function; output white hot/black hot
♦ High-resolution OLED display
♦ Key Control, operate easily and fast
♦ Rechargeable lithium battery.high battery endurance ability
♦ Shock and vibration resistance structure
♦ Divisional instructions and propriety of the range-measurement function, can achieve long and short-distance object aiming
Product Parameters

Model	SHR-PHLIR-325	SHR-PHLIR-335	SHR-PHLIR-354	SHR-PHLIR-375
Detector type	Uncooled focal plane array, 384×288
OLED resolution	1024×768
Focal length	25mm	35mm	54mm	75mm
Eyepiece	Single-eyepiece display (refraction adjustable and calibrated).
FOV	14.9°×11.2°	10.7°×8.0°	6.9°×5.2°	5.0°×3.7°
Digital zoom	2×; 4×;8× ; 16×
Wavelength	8~14μm
Frame rate	50Hz
Color palette	6 types of color palette, Rainbow, Hot Metal, White Hot, Black Hot, Yellow saturated, bird watching mode
Hot spot tracking	Hotspot tracking indicator on/off, automatic tracking of multiple hotspot targets
Cross cursor	7 types of cross cursor on/off, arbitrary change of different cursor, accurate location of the target
Target distance	Human detection:1667 m, recognition: 471 m Vehicle detection: 2501 m, identification: 626 m	Human detection: 2334 m, recognition: 584 m Vehicle detection: 3501 m, identification: 876 m	Human detection: 2850 m, recognition: 985 m Vehicle detection: 3960 m, identification: 1280 m	Human detection: 3150 m, recognition: 1390 m Vehicle detection: 4300 m, identification: 1680 m
Image processing	Non-uniformity correction, image smoothing function, image details enhancement, digital filtering noise reduction
Image adjustment	5 image edge adjustment (0-4), or 5 image detail adjustment (0-4), brightness, contrast adjustable
Battery	Built-in chargeable batteries, 18500 lithium battery, 2040mAH, working time 6 hours
Storage	16G
USB	Type-C
Automatic shutdown	40 minutes
Power consumption	1W
Impact resistant	800G IEC68-2-29
Weight	480g	500g	550g	630g
Product size	180×72×62mm	212.4×64×64mm	212.4×64×71.7mm	236.7×86.5×86mm
Protection grade	IP66
Temperature	Working: -25ºC ~ +45ºC; Storage: -25ºC ~ +60ºC

Detailed Photos Effect Demo

Packaging & Shipping
>>> PackageStandard Wooden or Carton cases >>> Delivery 7-20 days after the order is confirmed, delivery details should be decided according to production season and order quantity.

Company Profile Our Company
Sheenrun company, founded in 2004, is one of the largest manufacturers of long-range thermal imaging cameras and laser night vision cameras, as well as a relying Academician surveillance Engineering Technology Research Center in China.Sheenrun adheres to independent innovation, which developed the world's first laser night vision camera, and the continuous zoom infrared thermal imaging technology has reached the international advanced standard level. The laser night vision and infrared thermal imaging products have been widely used in national defense, safe cities, railways, highways, forest fire, oil, and other fields, achieved all-weather surveillance, and provided technical support for the maintenance of national security and social stability.
