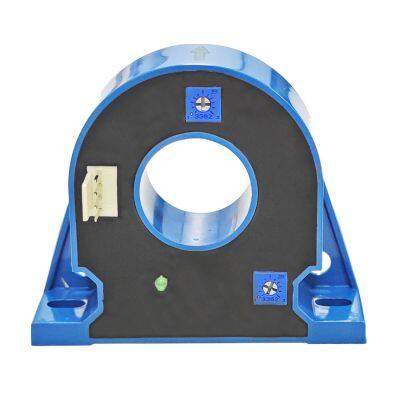

RIT01M 0.2% Accuracy Residual Current Transducer

Product Details

Product Description

Product Description
RIT01M has a high gain and measurement 0.2% accuracy in the broad bandwidth range, due to the application of the multi-point zero-flux technology system and high-frequency ripple sensing channel on topof currently existing DC sensor technology.
Accuracy: 0.2%.
Linearity: 0.1%.
Zero Offset Voltage: ±10mV.
Dynamic Response Time: 2ms.
Frequency bandwidth(-3dB): up to 100KHz.
Insulation Voltage (Between primary and secondary): 5KV.
Operation Temperature Range: -40 ~ 85℃.
RIT series leakage current transducer is designed for residual and micro current measurement from 0.01A to 10A, and output with voltage. It has been used for vacuum coating and data center power supply systems.

---
