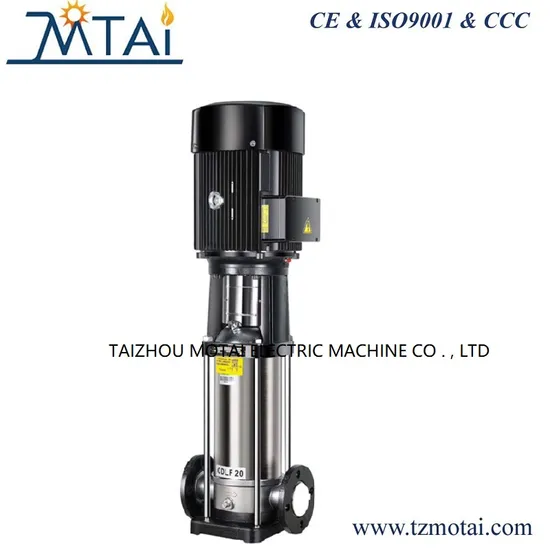

CDLF series All stainless steel multistage booster pump 3kw

Product Description

Product Description
1.Product Overview
CDL/CDLFvertical multistage inline pump is the latest model with the features of energy-saving and less space demand, easy to install and has stable performances.
With AISI 304 stainless steel shell and wear resistant axle seal, the pump can live long service life without leakage.
With hydraulic equilibrium to balance the axial force, the pump can run more smoothly with less noise, and it can be easily installed in the same level pipelines, which enjoys better installation conditions than model GDL.
With these features, GDL pump can easily meet the needs and requirements for water supply and drainage for high buildings, deep wells and fire-fighting equipments.
2.Parameters
Flow range: up to 195m3/h
Head range: up to 230m
Speed: 2900r/min
Maximum pressure: 2.5MPa
Medium temperature: -15~+120ºC
Environment temperature: ≤+40ºC
Motor protection level: IP44, IP54
Insulation grade: B, F
Rotation direction: clockwise
Flanges DN: 25 to 150
3.Applications
Hot and cold water distribution and circuits
Domestic water supply for buildings
Water supply of houses,high buildings and hotels
Fire water supply for buildings(Fire fighting pressure boosting)
Water supply equipments
Water supply for boilers
Water circulation and boosting for industries
Other clean fluid transportation
For all industries where chemically neutral,non-explosive clear liquids without abrasive particles

4.PUMP ADVANTAGE:
High hydraulic efficiency
Low electrical consumption
Low sound levels
Almost maintenance free
5.MOTOR
. Standardised with flanges. Coupled to the pump by rigid coupling
. Speed: 2900 rpm
. Winding 3-phase 380V/50 Hz
. Insulating class: F
. Protection: IP55
6.Model Meaning
50GDL18-15x6
50: Inlet & Outlet Diameter (mm)
GDL: Vertical Multistage Pipeline Pump
18: Flow (m³/h)
15: Single Suction Head (m)
6: Stage
7.GDL PUMP EXPLODED View
8.Product feature
9.Main parts List

Part	Material
Shaft seal form	Packing gland or Mechncial sesal
Impeller	Cast iron, Ductile iron, Carbon steel , Stainless steel, Bronze, Duplex SS
Bearing	Qualified China Bearing
Shaft	2Cr13, 3Cr13, Duplex SS

10.Part of Model Performance

Model	Flow		Head (m)	Power (kW)
	m3/h	L/s
25CDL/CDLF2-12x3	2	0.6	36	1.1
25CDL/CDLF2-12x4	2	0.6	48	1.1
25CDL/CDLF2-12x5	2	0.6	60	1.5
25CDL/CDLF2-12x6	2	0.6	72	1.5
25CDL/CDLF2-12x7	2	0.6	84	2.2
25CDL/CDLF2-12x8	2	0.6	96	2.2
25CDL/CDLFL2-12x9	2	0.6	108	2.2
25CDL/CDLF2-12x10	2	0.6	120	3
25CDL/CDLF2-12x11	2	0.6	132	3
25CDL/CDLF2-12x12	2	0.6	144	3
25CDL/CDLF4-11x3	4	1.1	33	1.1
25CDL/CDLF-11x4	4	1.1	44	1.5
25CDL/CDLF4-11x5	4	1.1	55	2.2
25CDL/CDLF4-11x6	4	1.1	66	2.2
25CDL/CDLF4-11x7	4	1.1	77	3
25CDL/CDLF4-11x8	4	1.1	88	3
25CDL/CDLF4-11x9	4	1.1	99	3
25CDL/CDLF4-11x10	4	1.1	110	4
25CDL/CDLF4-11x11	4	1.1	121	4
25CDL/CDLF4-11x12	4	1.1	132	4
40CDL/CDLF6-12x3	6	1.7	36	1.5
40CDL/CDLF6-12x4	6	1.7	48	2.2
40CDL/CDLF6-12x5	6	1.7	60	2.2
40CDL/CDLF6-12x6	6	1.7	72	3
40CDL/CDLF6-12x7	6	1.7	84	3
40CDL/CDLF6-12x8	6	1.7	96	4
40CDL/CDLF6-12x9	6	1.7	108	4
40CDL/CDLF6-12x10	6	1.7	120	4
40CDL/CDLF6-12x11	6	1.7	132	5.5
40CDL/CDLF6-12x12	6	1.7	144	5.5
50CDL/CDLF12-15x2	12	3.3	30	2.2
50CDL/CDLF12-15x3	12	3.3	45	3
50CDL/CDLF12-15x4	12	3.3	60	4
50CDL/CDLF12-15x5	12	3.3	75	5.5
50CDL/CDLF12-15x6	12	3.3	90	5.5
50CDL/CDLF12-15x7	12	3.3	105	7.5
50CDL/CDLF12-15x8	12	3.3	120	7.5
50CDL/CDLF12-15x9	12	3.3	135	11
50CDL/CDLF12-15x10	12	3.3	150	11
50CDL/CDLF18-15x2	18	5	30	3
50CDL/CDLF18-15x3	18	5	45	4
50CDL/CDLFL18-15x4	18	5	60	5.5
50CDL/CDLF18-15x5	1 8	5	75	7.5
50CDL/CDLF18-15x6	1 8	5	90	7.5
50CDL/CDLF18-15x7	1 8	5	105	11
50CDL/CDLF18-15x8	18	5	120	11
50CDL/CDLF18-15x9	18	5	135	15
50CDL/CDLF18-15x10	18	5	150	15
65CDL/CDLF24-12x2	24	6.7	24	3
65CDL/CDLF24-12x3	24	6.7	36	4
65CDL/CDLF24-12x4	24	6.7	48	5.5
65CDL/CDLF24-12x5	24	6.7	60	7.5
65CDL/CDLF24-12x6	24	6.7	72	7.5
65CDL/CDLF24-12x7	24	6.7	84	11
65CDL/CDLF24-12x8	24	6.7	96	11
65CDL/CDLF24-12x9	24	6.7	108	15
65CDL/CDLF24-12x10	24	6.7	120	15
80CDL/CDLF36-12x2	36	10	24	4
80CDL/CDLF36-12x3	36	10	36	5.5
80CDL/CDLF36-12x4	36	10	48	7.5
80CDL/CDLF36-12x5	36	10	60	11
80CDL/CDLF36-12x6	36	10	72	11
80CDL/CDLF36-12x7	36	10	84	15
80CDL/CDLF36-12x8	36	10	96	15
80CDL/CDLF36-12x9	36	10	108	18.5
80CDL/CDLF36-12x10	36	10	120	18.5
80CDL/CDLF54-14x2	54	15	28	7.5
80CDL/CDLF54-14x3	54	15	42	11
80CDL/CDLF54-14x4	54	15	56	15
80CDL/CDLF54-14x5	54	15	70	18.5
80CDL/CDLF54-14x6	54	15	84	18.5
80CDL/CDLF54-14x7	54	15	98	22
80CDL/CDLF54-14x8	54	15	112	30
80CDL/CDLF54-14x9	54	15	126	30
80CDL/CDLF54-14x10	54	15	140	37
100CDL/CDLF72-14x2	72	20	28	11
100CDL/CDLF72-14x3	72	20	42	15
100CDL/CDLF72-14x4	72	20	56	18.5
100CDL/CDLF72-14x5	72	20	70	22
100CDL/CDLF72-14x6	72	20	84	30
100CDL/CDLF72-14x7	72	20	98	30
100CDL/CDLF72-14x8	72	20	112	37
100CDL/CDLF72-14x9	72	20	126	37
100CDL/CDLF72-14x10	72	20	140	45
100CDL/CDLF100-20x2	100	27.8	40	18.5
100CDL/CDLF100-20x3	100	27.8	60	30
100CDL/CDLF100-20x4	100	27.8	80	37
100CDL/CDLF100-20x5	100	27.8	100	45
100CDL/CDLF100-20x6	100	27.8	120	55
100CDL/CDLF100-20x7	100	27.8	140	75
100CDL/CDLF100-20x8	100	27.8	160	75
100CDL/CDLF00-20x9	100	27.8	180	75
100CDL/CDLF100-20xl0	100	27.8	200	90
125CDL/CDLF126-20x2	126	35	40	18.5
125CDL/CDLF126-20x3	126	35	60	30
125CDL/CDLF126-20x4	126	35	80	37
125CDL/CDLF126-20x5	126	35	100	45
125CDL/CDLF126-20x6	126	35	120	55
125CDL/CDLF126-20x7	126	35	140	75
125CDL/CDLF126-20x8	126	35	160	75
125CDL/CDLF126-20x9	126	35	180	75
125CDL/CDLF126-20x10	126	35	200	90
150CDL/CDLF160-30x2	160	44.4	60	45
150CDL/CDLF160-30x3	160	44.4	90	75
150CDL/CDLF160-30x4	160	44.4	120	90
150CDL/CDLF160-30x5	160	44.4	150	110
150CDL/CDLF160-30x6	160	44.4	180	132
150CDL/CDLF160-30x7	160	44.4	210	160

Productive process 11.Productive Process
12.Application scenarios Application scenarios
Our Advantages 13.ADVANTAGE:
Pre-sales service:
•We are a sales team, with all technical support from engineer team.
•We value every inquiry sent to us, ensure quick competitive offer within 24 hours.
•We cooperate with customer to design and develop the new products. Provide all necessary document.
After-sales service:
•We respect your feed back after receive the motors.
•We provide 1years warranty after receipt of motors..
•We promise all spare parts available in lifetime use.
•We loge your complain within 24 hours. FAQ
